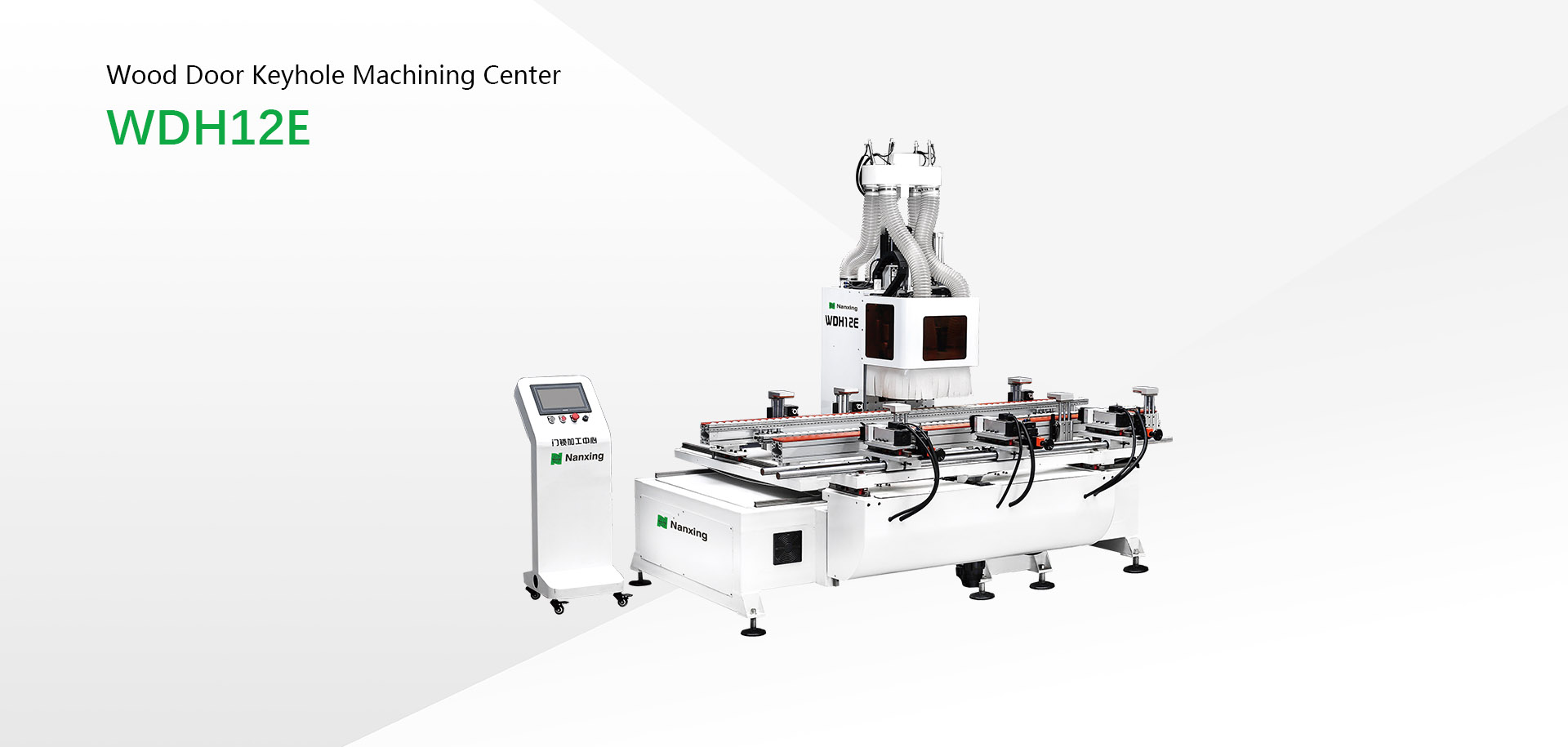

Wood Door Keyhole Machining Center WDH12E

Wood Door Keyhole Machining Center WDH12E

Highlights

  • Three groups hinge drilling working together.
  • Automatic panel thickness and width measuring device & automatic tool length measuring device
  • Automatic lubrication device to ensure the normal operation and prolong the working life of the machine
  • One time positioning and pressing for processing lock slot, keyhole and hinge.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model WDH12 WDD12 WDH12E
panel length 500-2800mm 1800-2500mm 1800-2500mm
panel width 450-1200mm 500-1100mm  500-1100mm
panel thickness 30-80mm 30-80mm 30-80mm
max travelling speed (X/Y/Z) 60/60/10 m/min 60/60/10 m/min 15/15/10 m/min
keyhole drilling motor 3.5kw+1.5kw 3.5kw+1.5kw 3.5kw+1.5kw
slotting motor  6kw+0.37kw 6kw+0.37kw 6kw+0.37kw
hinge drilling motor  3.5kw+0.37kw 3kw+0.37kw 1.5kw * 3
total power 25kw 25kw 19kw
machine size 5000×2600×1700mm 3700×2600×1700mm 2650×2450×2400mm
machine weight 2500kg 3000kg 1500kg
