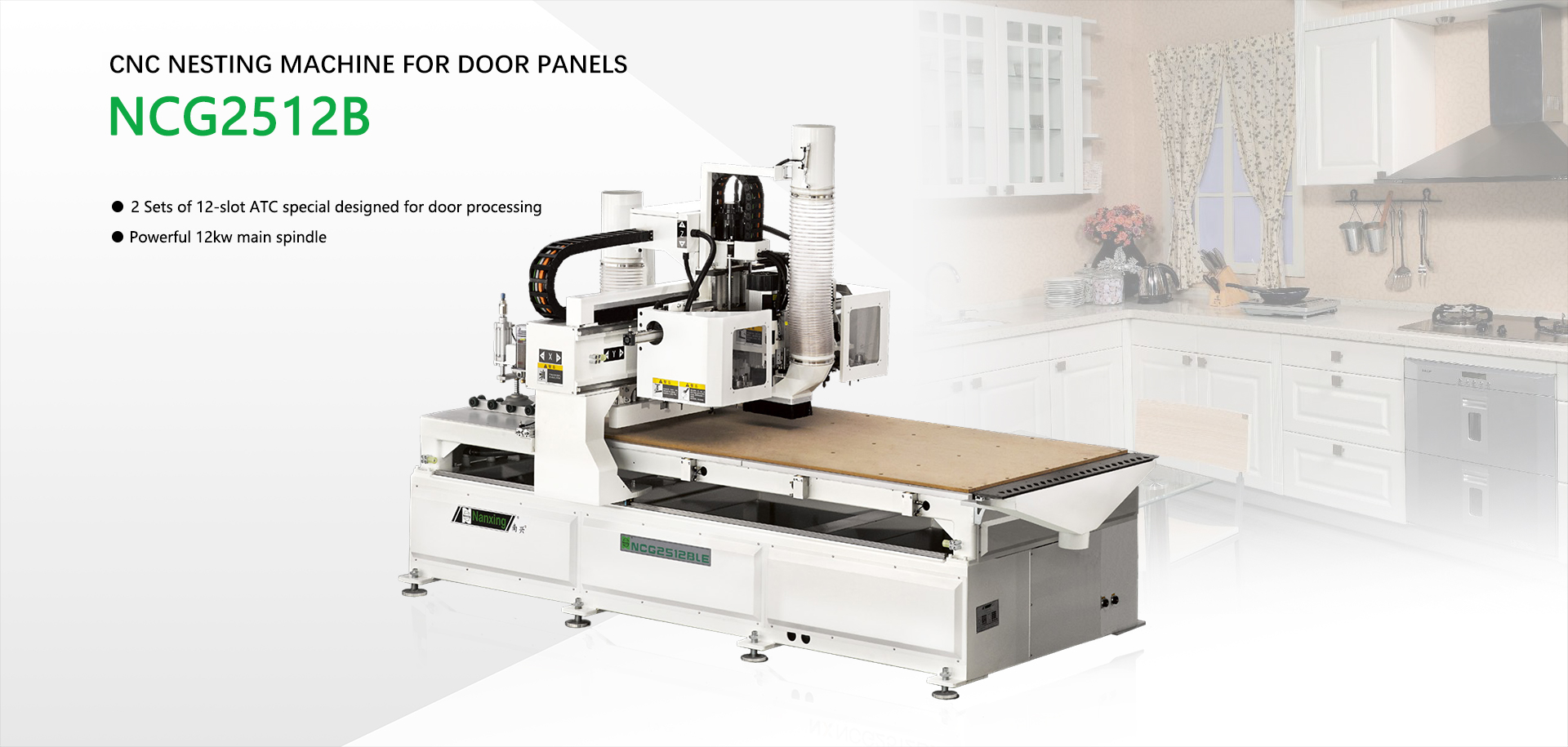

CNC Nesting Machine for Door Panels NCG2512B

Specially designed for door processing

NCG2512B is fit for making cabinet door, wardrobe door, plastic door, wood decoration, partitions and some other industries; Single or complex panel designs can be completed in one process such as drilling, shaping, carving, cutting and various kinds of 3D modeling. This machine can be single use, or integrated with automatic labeling device, door hinge hole borer, door panel turner, door shaping and cutting finally to own a fully automatic door line.

Highlights

  • Heavy duty bed structure machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Two sets of 8-slot ATC controlled by servo motor offer a basis for the flexible applications of different tools and units. Suitable for door processing. Moving with main spindle, saves time of manual changing. Reduce set-up times and higher tool-holder magazines capacity;
  • Powerful 12kw Italian air cooling spindle: powerful, precise and stable, max rotating speed up to 24000rpm/min. Coupler type HSK-63F making contact between tool holder and clamp closely, fix tightly, fast for ATC;
  • The tool setting gauge makes it possible to set tool automatically after changing tool, improves speed and accuracy effectively;
  • The accurate movement of each axis is ensured by the high quality servo motors;
  • Independent control cabinet. SYNIC control system, IPC with Windows 7.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NCG2512B

Table size

2500×1250mm

Max speed

30/30/20 m/min

Main spindle power

12kw

Max rotate speed

24000rpm

ATC

12+12

Vacuum pump

7.5kw

Suction flow rate

250m3/h

Dust extraction

φ200mm

Total power

25kw

Overall dimension

3500×2600×2500mm

Net weight

2200kg
