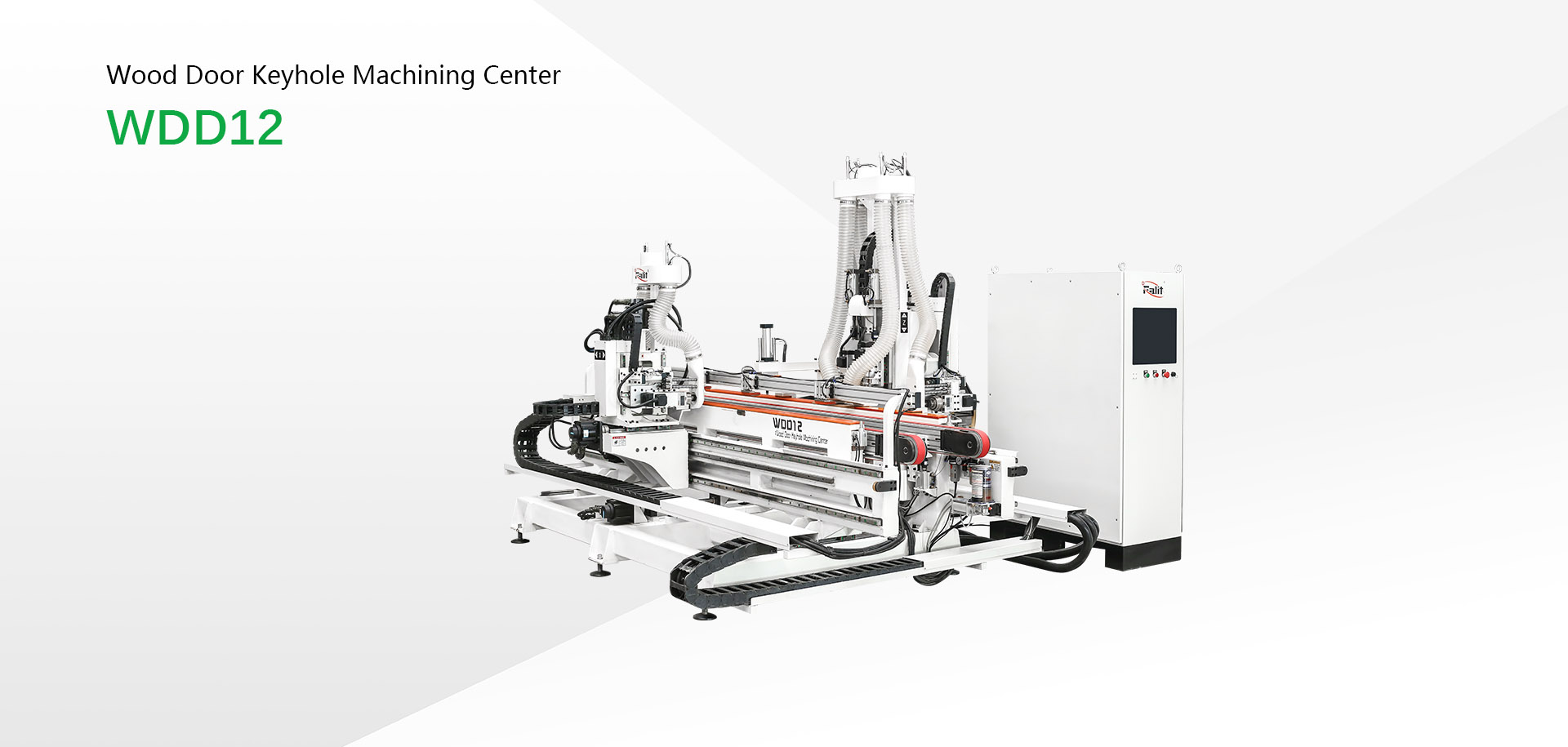

Wood Door Keyhole Machining Center WDD12

Highlights

  • Automatic adjust tool and multi-point measurement to ensure processing accuracy;
  • Double sides working together, high efficiency;
  • Following press device, auto adjust to meet customized requirements;
  • Automatic lubrication device to ensure the normal operation and extend machine life;
  • Passing through automatic feeding and unloading, the unloading direction is optional to meet the needs of single machine and connection.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model WDH12 WDD12 WDH12E
panel length 500-2800mm 1800-2500mm 1800-2500mm
panel width 450-1200mm 500-1100mm 500-1100mm
panel thickness 30-80mm 30-80mm 30-80mm
max travelling speed (X/Y/Z) 60/60/10 m/min 60/60/10 m/min 15/15/10 m/min
keyhole drilling motor 3.5kw+1.5kw 3.5kw+1.5kw 3.5kw+1.5kw
slotting motor  6kw+0.37kw 6kw+0.37kw 6kw+0.37kw
hinge drilling motor  3.5kw+0.37kw 3kw+0.37kw 1.5kw * 3
total power 25kw 25kw  19kw
machine size 5000×2600×1700mm 3700×2600×1700mm 2650×2450×2400mm
machine weight 2500kg 3000kg 1500kg
