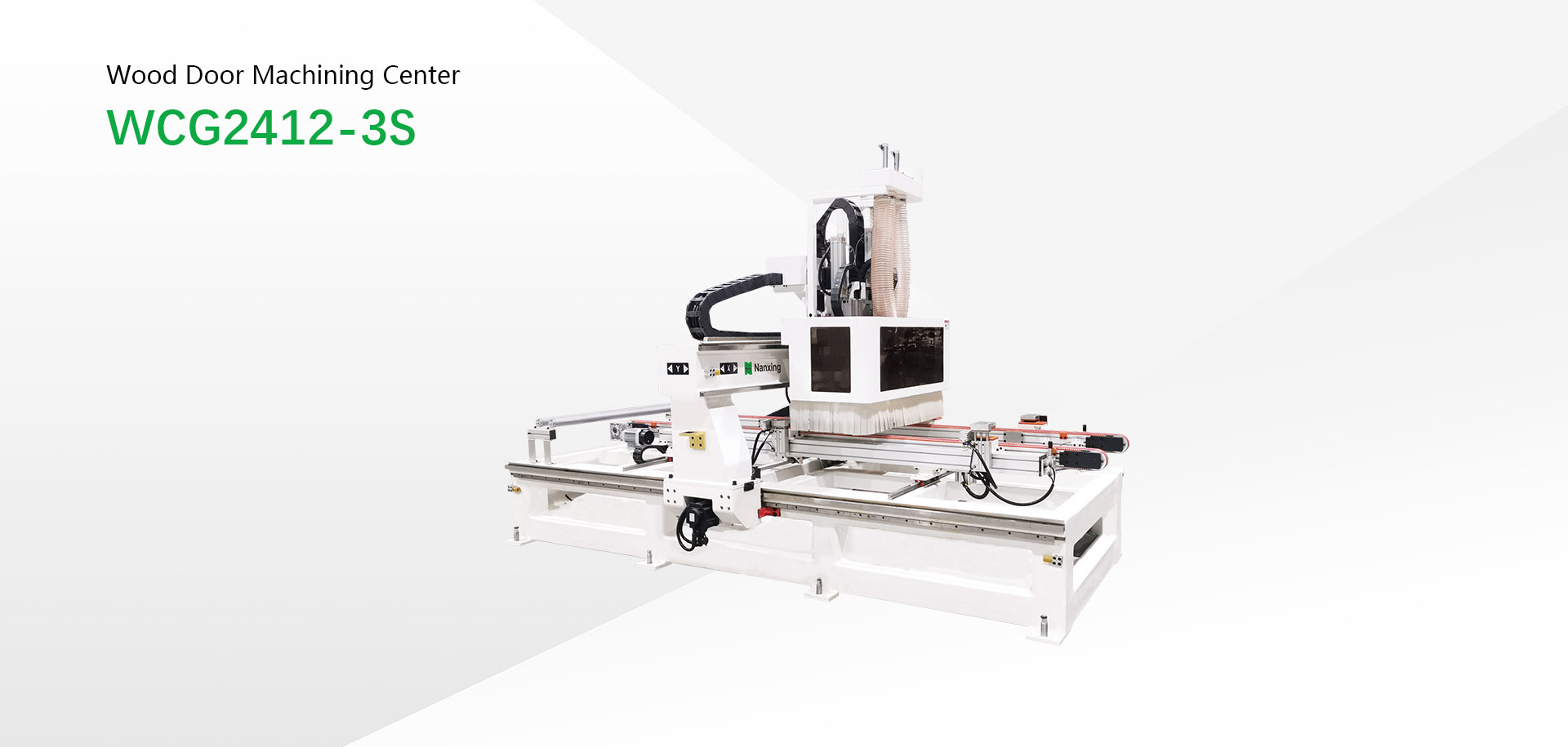

Wood Door Machining Center WCG2412-3S

Highlights

  • Automatic width adjustment, Vacuum adsorption working table
  • Can processing door hinges, slot holes, closures, slide slot, paint holes, The top can be carved.
  • Automatic tool adjustment, multi-point measurement, Ensure the processing accuracy;
  • Adopt the central lubrication system, Ensure the machine operation, Extended machine life;
  • with 3 auto tools changer, automatic feeding (optional automatic loading and unloading)

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model WCG2412-3S
panel length 1800-2400mm
panel width 500-1100mm
panel thickness 20-80mm
max travelling speed (X/Y/Z) 60/60/15 m/min
vert. spindle power 9kw
horiz. Spindle power 6kw
ATC capacity 3
total power 22kw
machine size 3800×2250×2250mm
machine weight 3000kg
