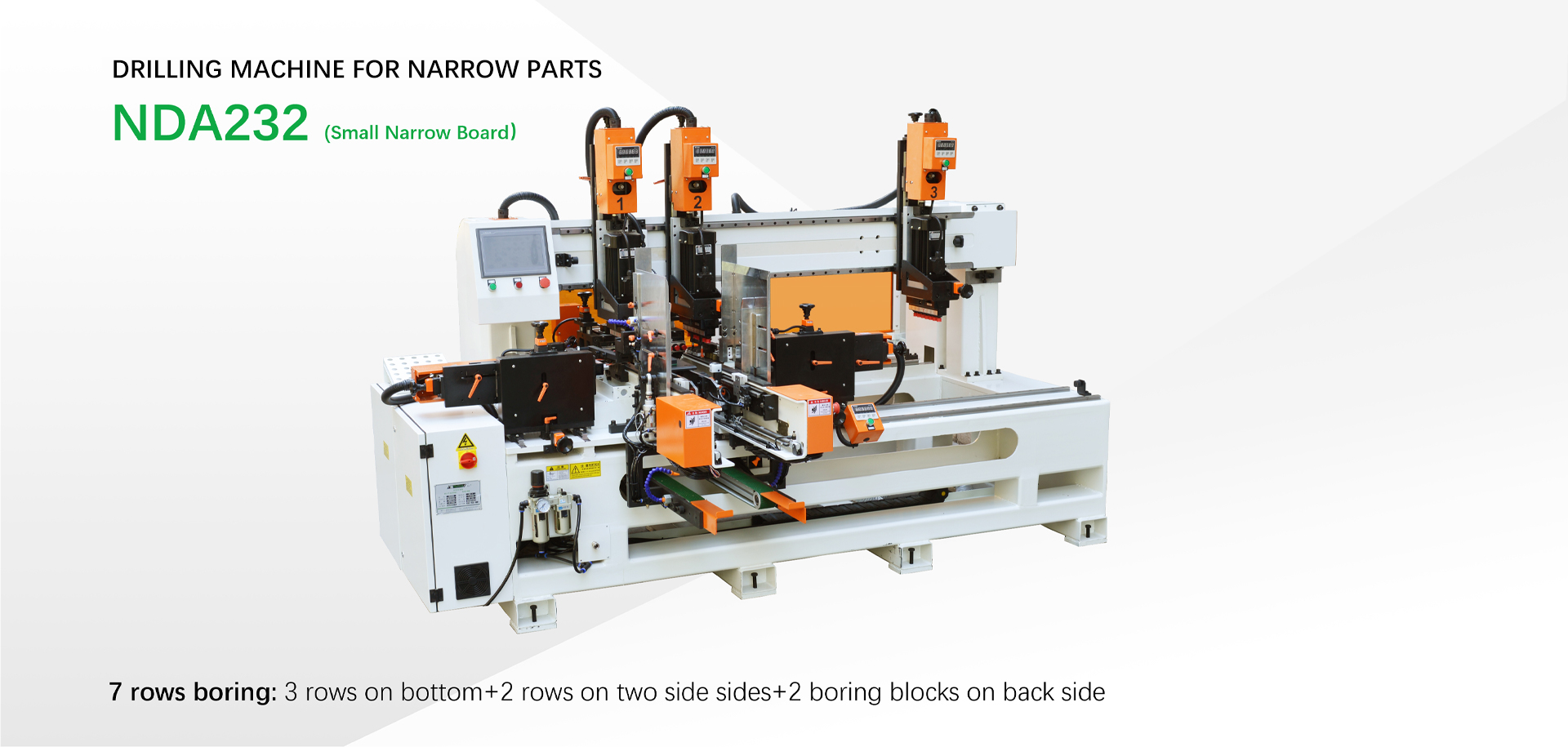

Multi-rows Boring Machine NDA232-Small Narrow Boards

NDA232, multi rows boring machine is special designed for boring work of small narrow board like drawer small furniture parts, feed in& out from front, this kind of return feed system plus simplified boring process make it possible to finish 4 sides boring including top, two side sides, and back side in one process. Boring block could be customized as per your boring requirement.

Highlights

  • Return feed system, feed in& out from front, boards are able to return automatically after boring, one operator is enough for putting and discharge boards, fast and efficient;
  • Independent boards feeding storage protects boards surface effectively;
  • Three vertical rows on top and two horizontal drills on side sides and another two on back side. The design 7 drills on each row can meet various boring requirements of small boards. Horizontal and vertical rows are able to work alternately or synchronously.
  • Boring rows position is easy to adjust by using a digital display sensor, easy operation and training;
  • Touch screen, boards counting, positioning, storage, boring are available at a glance thanks to inventive system, simplifies the operation.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NDA232

Max panel width

15-230mm

Min panel length

200mm(气动送料)

Max panel length

1500mm

Space of drills

32mm(标配)可定制钻包

Panel thickness

10-25mm

Performance

----

Motor power

1.5kw×7

Total power

11.5kw
