Drilling Machine NDB402

Highlights

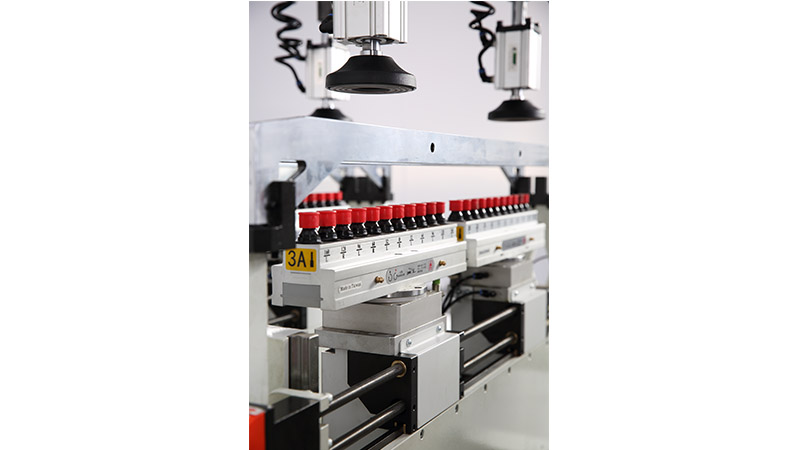

  • Vertical drills:11*2*4=88 horizontal drills:42

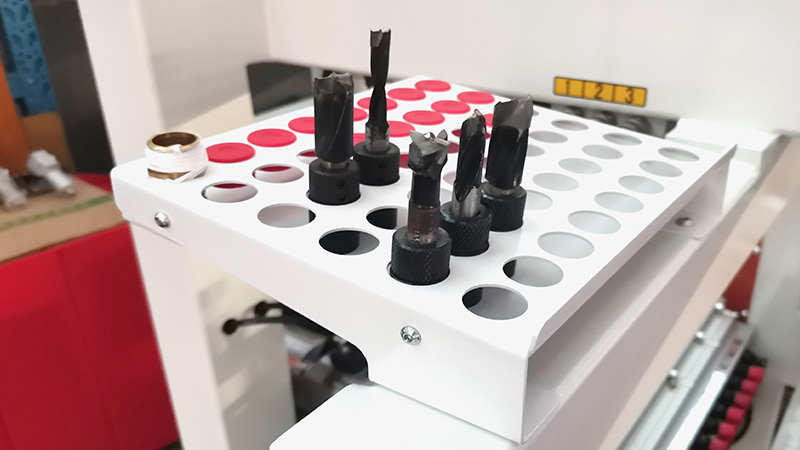

  • The quick-change drill bit is used on each row of multi-drill , which greatly improves the production efficiency of the multi-drill.
  • Multi-row drill bit spacing is 32mm

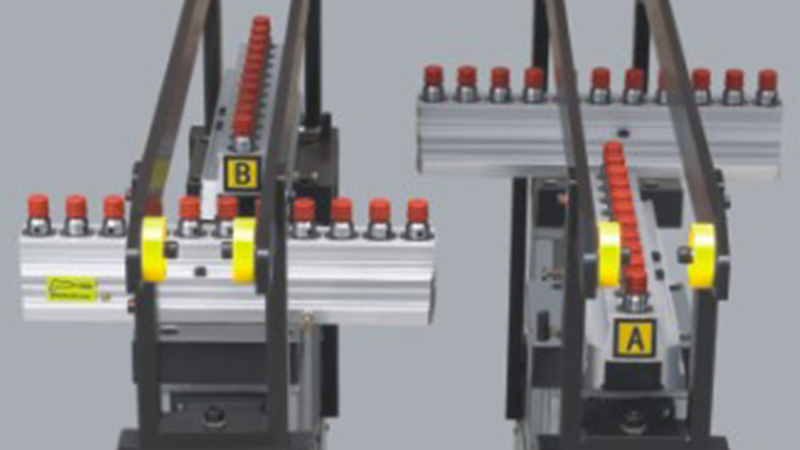

  • The bottom vertical drill row uses two independent drill rows, two independent motors, and the drill row can be rotated 90° independently.

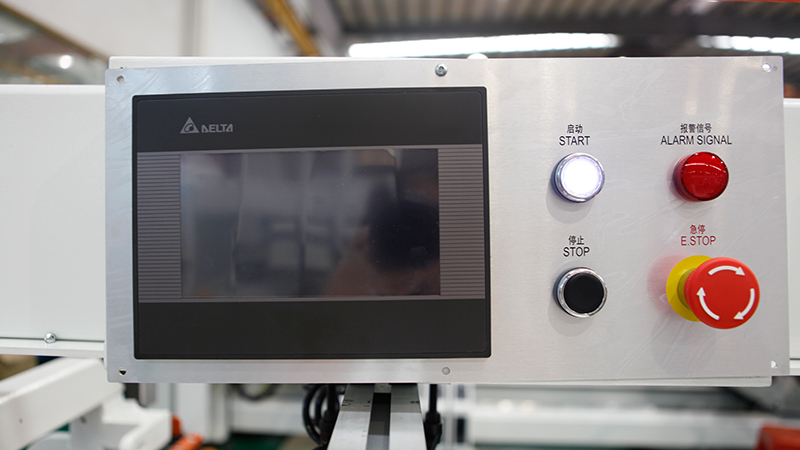

  • Easy operation.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NDB402

Max panel width

2850mm

Min. panel width

220mm

Max. panel thickness

70mm

Spacing of drills

32mm

Max vertical boring depth

70mm

Max horizontal boring depth

40mm

Total power

13.4kw

Overall dimension

4800×2835×1670mm

Approx. weight

2200kg
