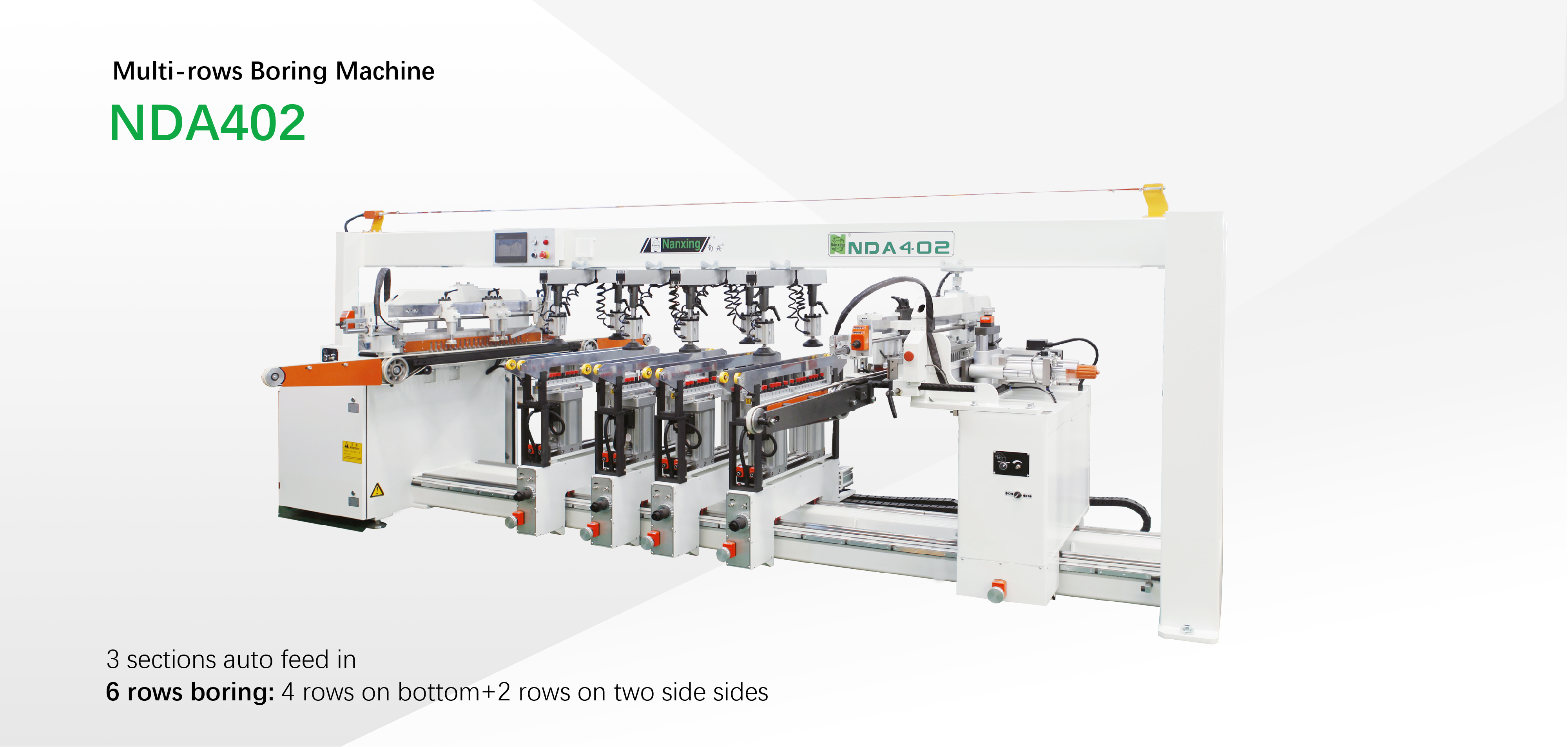

Multi-rows Boring Machine NDA402-Auto Feed In

Highlights

  • Strong bed structure machine body of high stability and longer service life;
  • The design of 4 boring rows on bottom and 2 rows on side is suitable for most boring requirements, especially for mass production;

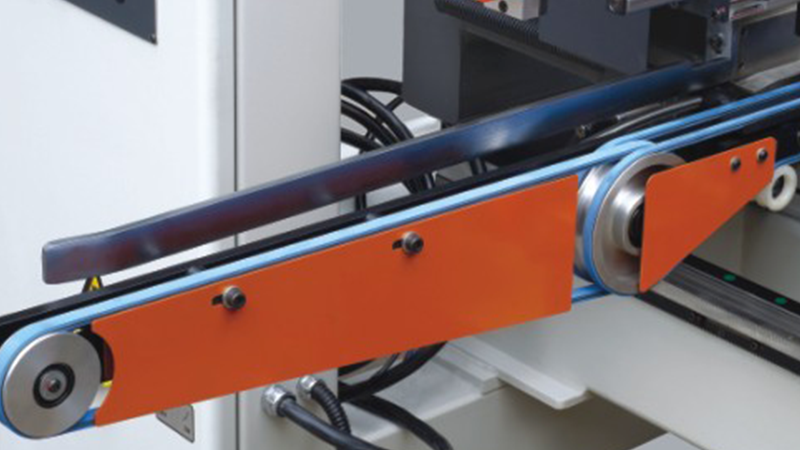

  • Auto feed-in and feed-out with 3 sections for continuous working with shortest waiting time;

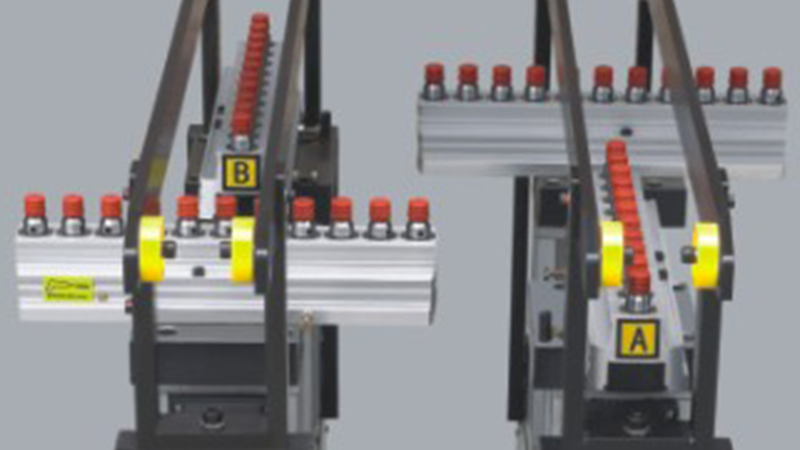

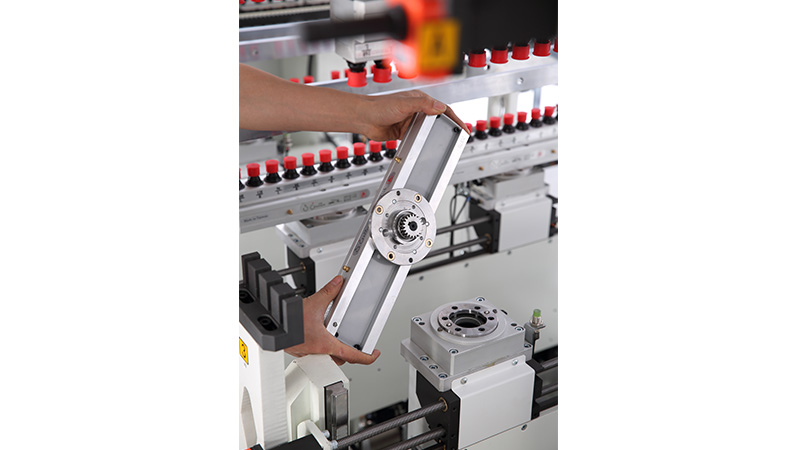

  • Two boring blocks controlled by separate motors in each row. Boring blocks can rotate to 90 degrees

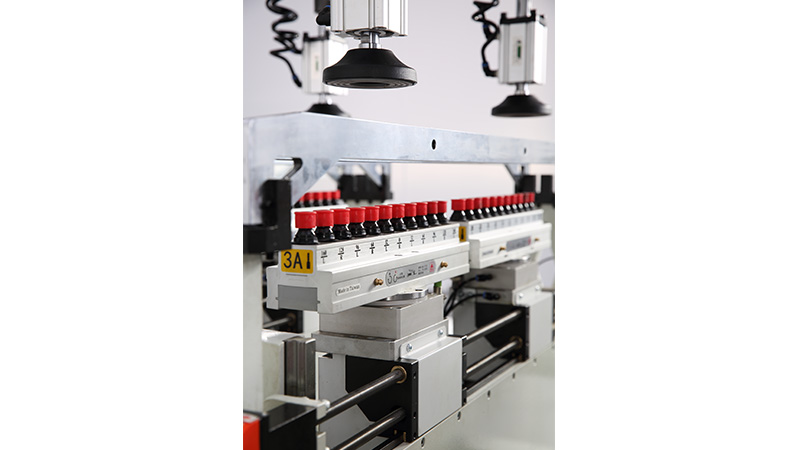

  • Pneumatic locking device applied at vertical rows, adjusting or changing boring block will be much faster and precise;

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NDA402

Max panel width

2650mm

Min. panel width

250mm

Max. panel thickness

70mm

Spacing of drills

32mm

Max vertical boring depth

70mm

Max horizontal boring depth

40mm

Total power

13.4kw

Overall dimension

4790×2635×1575mm

Approx. weight

2400kg
