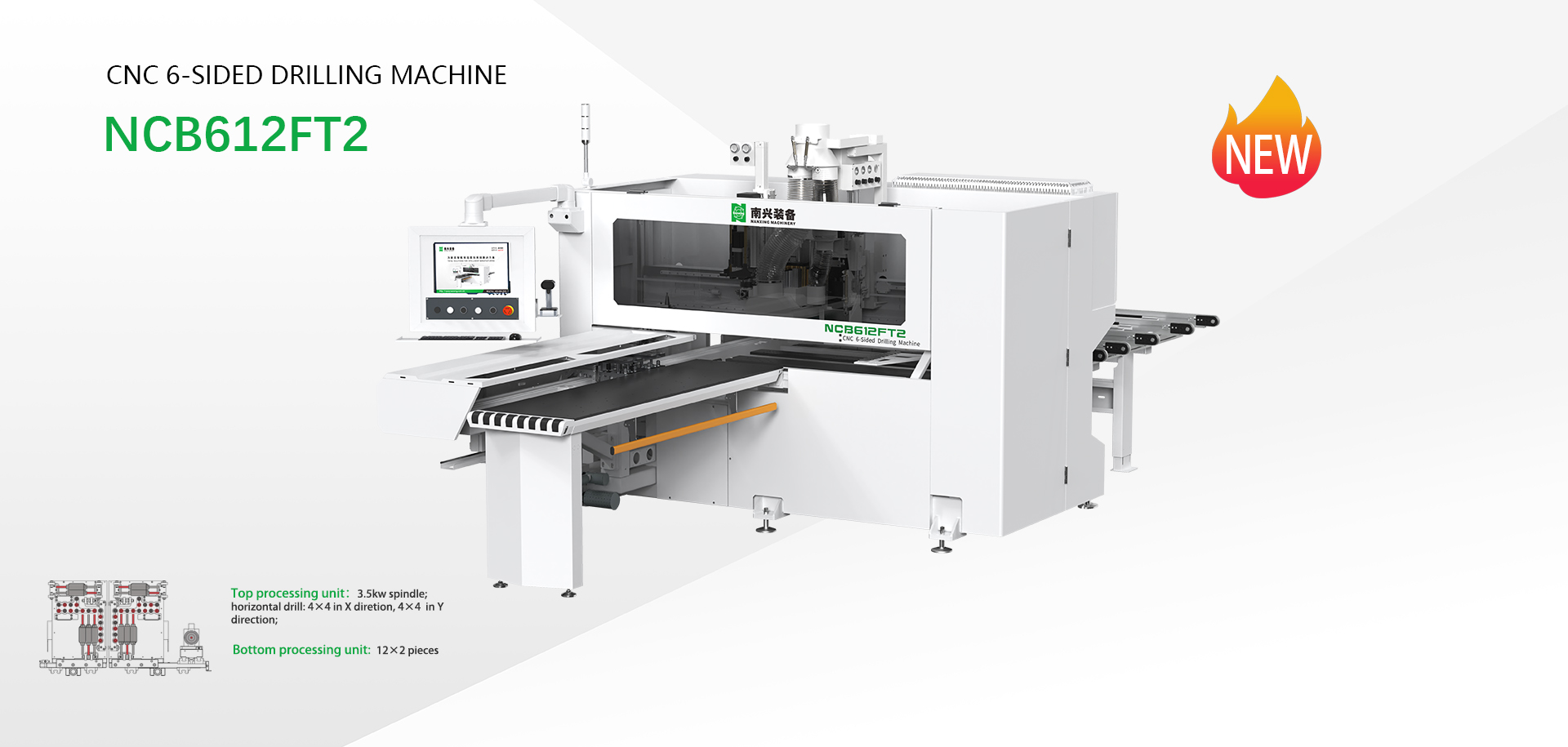

Model NCB612FT2 Panel size(drilling+grooving) Thickness:10-60mm Width:30(groove 40)-1200mm Length: 200- 3000mm Panel size(routing) Thickness 12-50mm Width 65-1200mm Length 250- 2400mm Control system SYNTECH Max speed(X/U/Y/Z) 135/75/30m/min Spindle power top:5.5kw,bottom:3.5kw Max rotation speed 18000rpm Top vert.drill 18×9 Top horiz. drill X direction:3×2 Y direction:2×2 Total power 26.83kw Rotation speed 5000rpm Net weight 3850kg Rotation speed 6150×3006×2325mm
Thickness:10-60mm
Width:30(groove 40)-1200mm
Length: 200- 3000mm
Thickness 12-50mm
Width 65-1200mm
Length 250- 2400mm
SYNTECH
135/75/30m/min
top:5.5kw,bottom:3.5kw
18000rpm
18×9
5000rpm
6150×3006×2325mm
