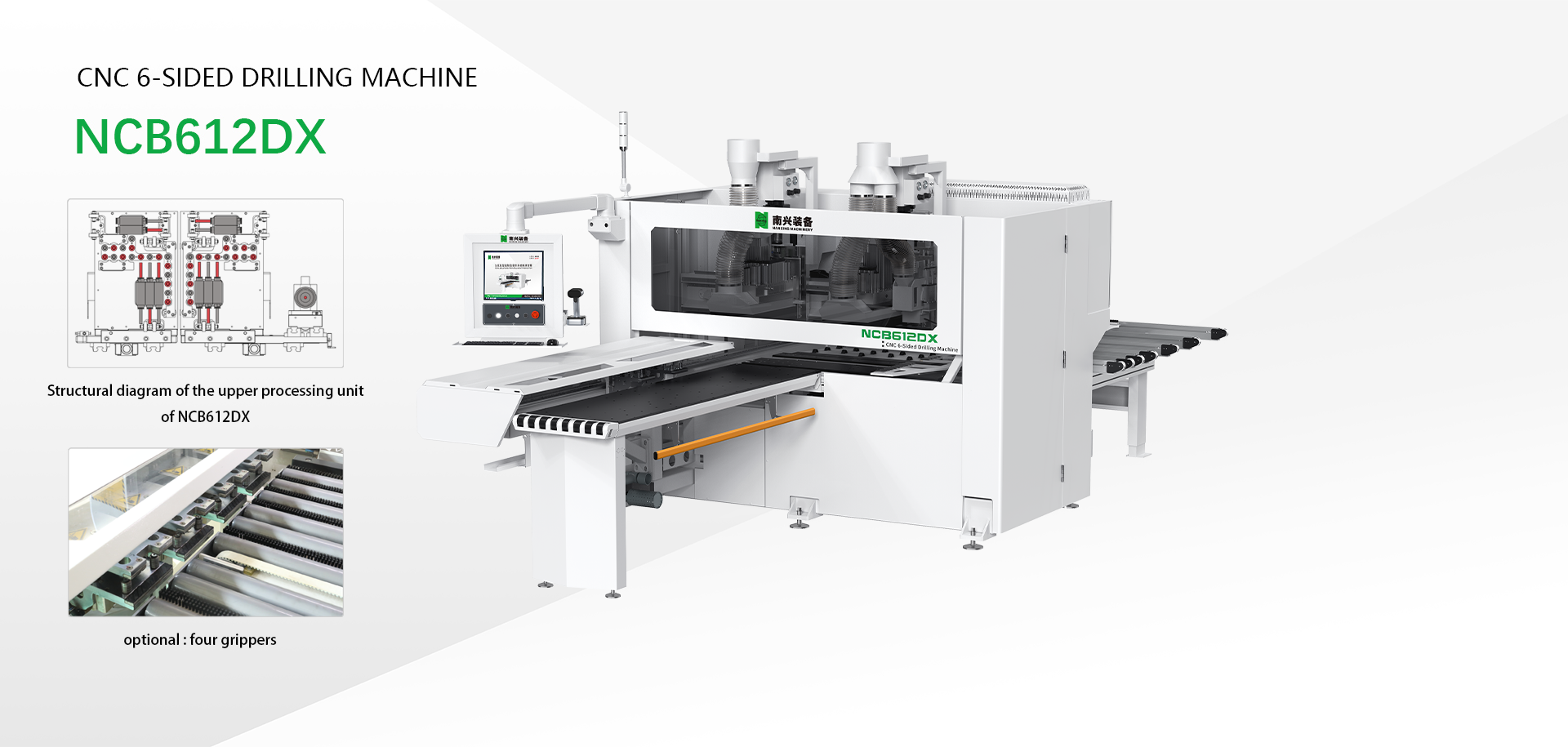

CNC 6-sided Drilling Machine NCB612DX

Highlights

  • High technology compact machine making possible to drill holes on 6 sides, groove top and bottom, route shapes in one process without necessary of turning panel. Continuous working for various batch sizes and patterns to fit complex production. High accuracy and processing effective, basically no complaints.
  • Long guiding rail with dual clampers. Cleaning device in between to remove possible chips and dust on workpiece surface for tightly grasping. Special design on bottom, clampers will fall down to make sure workpiece and the unloading table are at same level to prevent possible small scratch.
  • Two boring blocks and one 3.5kw main spindle on top processing unit; One boring block and one 3.5kw main spindle on bottom processing unit; Well arranged drills layout makes it possible to do mirror processing at the same time.
  • The accurate movement of each axis is ensured by the high quality servo motors. Fast and precise. Max travelling speed: X/U/Y/Z:135/135/75/30m/min

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NCB612DX

Panel length

200-3000mm

Panel width

30-1200mm

Panel thickness

10-60mm

Max speed

135/135/75/30m/min

Main spindle power

3.5kw×2

Max rotation speed

18000rpm

Upper vert.drill

18×2

Upper vert. drill

X direction:6×2  Y direction:2×2

Lower vert.drill

9

Rotation speed

5000rpm

Dust collector

Top dust collectorφ150mm×2

Bottom dust collectorφ125mm

Total power

21.93kw

Overall dimension

6150×2806×2325mm

Net weight

3750kg
