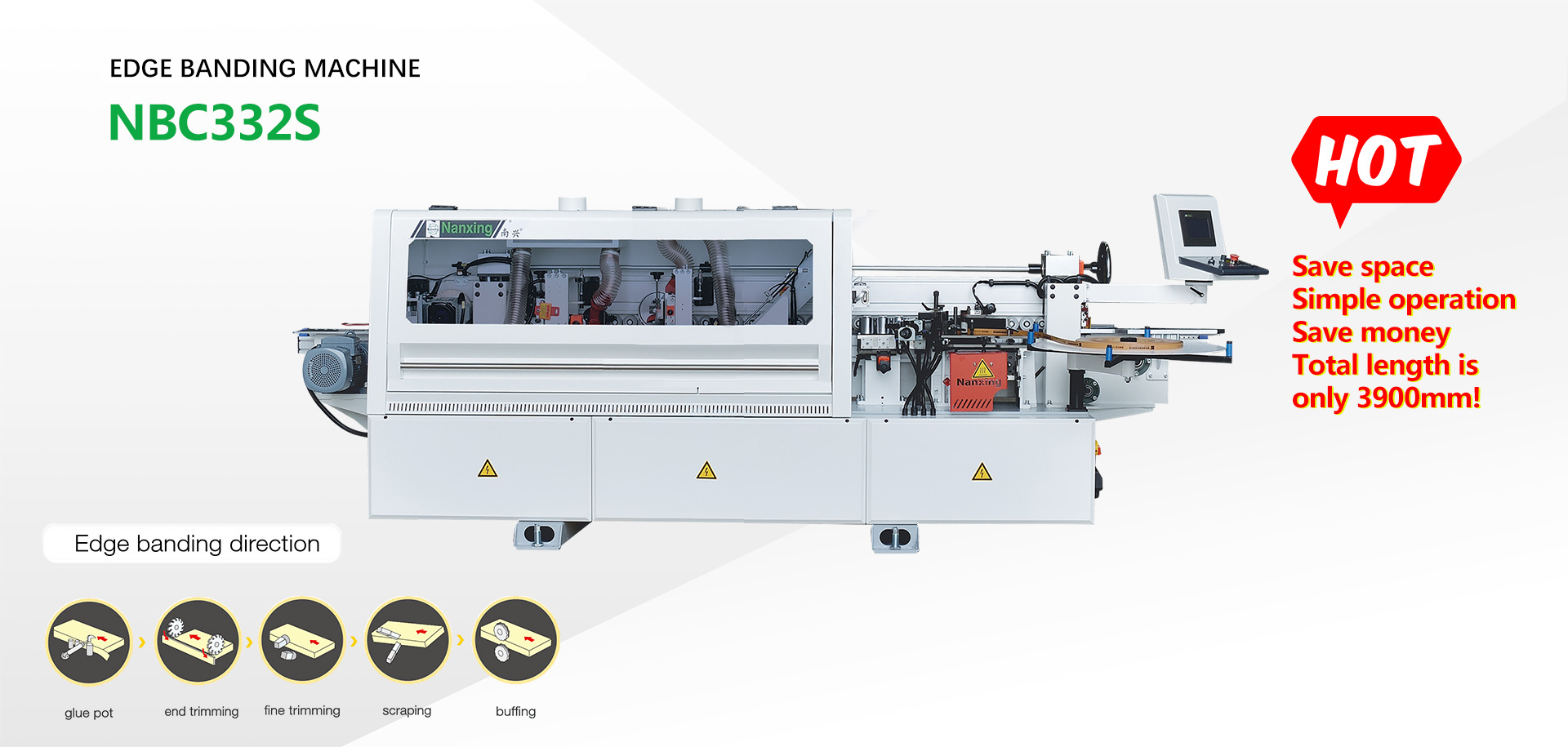

Gluing, snipping, end trimming, fine trimming, scrapping, buffing work of edge banding could be done automatically in one process. Fast processing, save time, save space, simple operation, and save money. Total length of machine is 3900mm; One 40’’ container could load 6 sets, save shipping cost;
Machine body and most mechanical machine parts are welded by robots and proceed by advanced CNC machines for higher stability and longer service life without deforming ;
Stand-by mode automatically turned on when machine stops working for a certain period (according to setting time) in order to save energy. Only one click to re-start production.

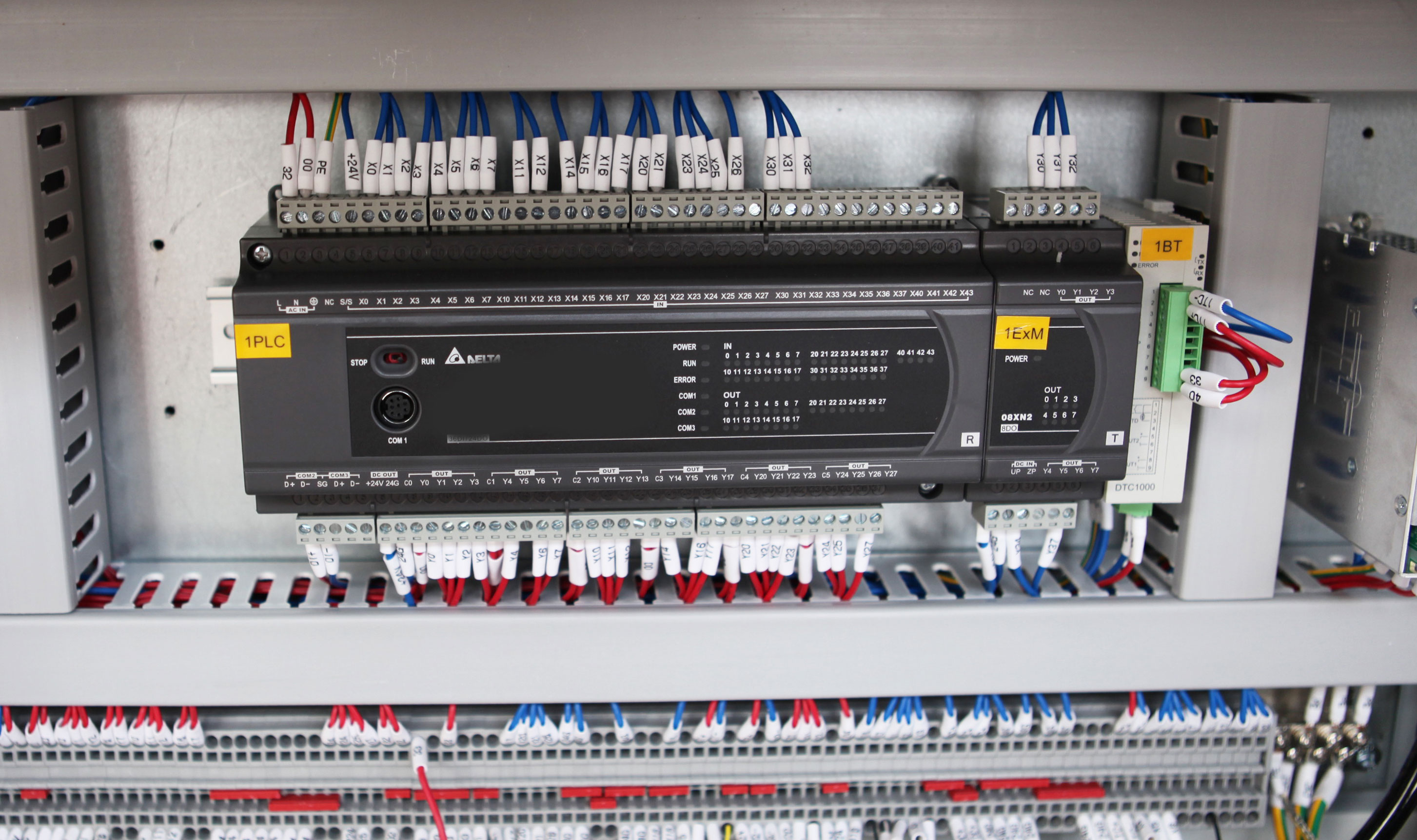

Most electric components are in world famous brand of high stability and great performance. PLC control, Each working unit is controlled by independent frequency converter.
Good documentation, each wire has a unique code label which offers max convenience for troubleshooting and online support.
Nanxing Headquarters in Dongguan China
Model
NBC332S
Panel length:
≥120 mm
Panel width:
≥60 mm
Mini. Panel size:
120×60mm
Panel thickness:
9-60 mm
Edge tape thickness:
0.4-3 mm
Feeding speed:
16/20/24m/min
Power supply:
380 V; 50 Hz
Air pressure required:
0.7MPa

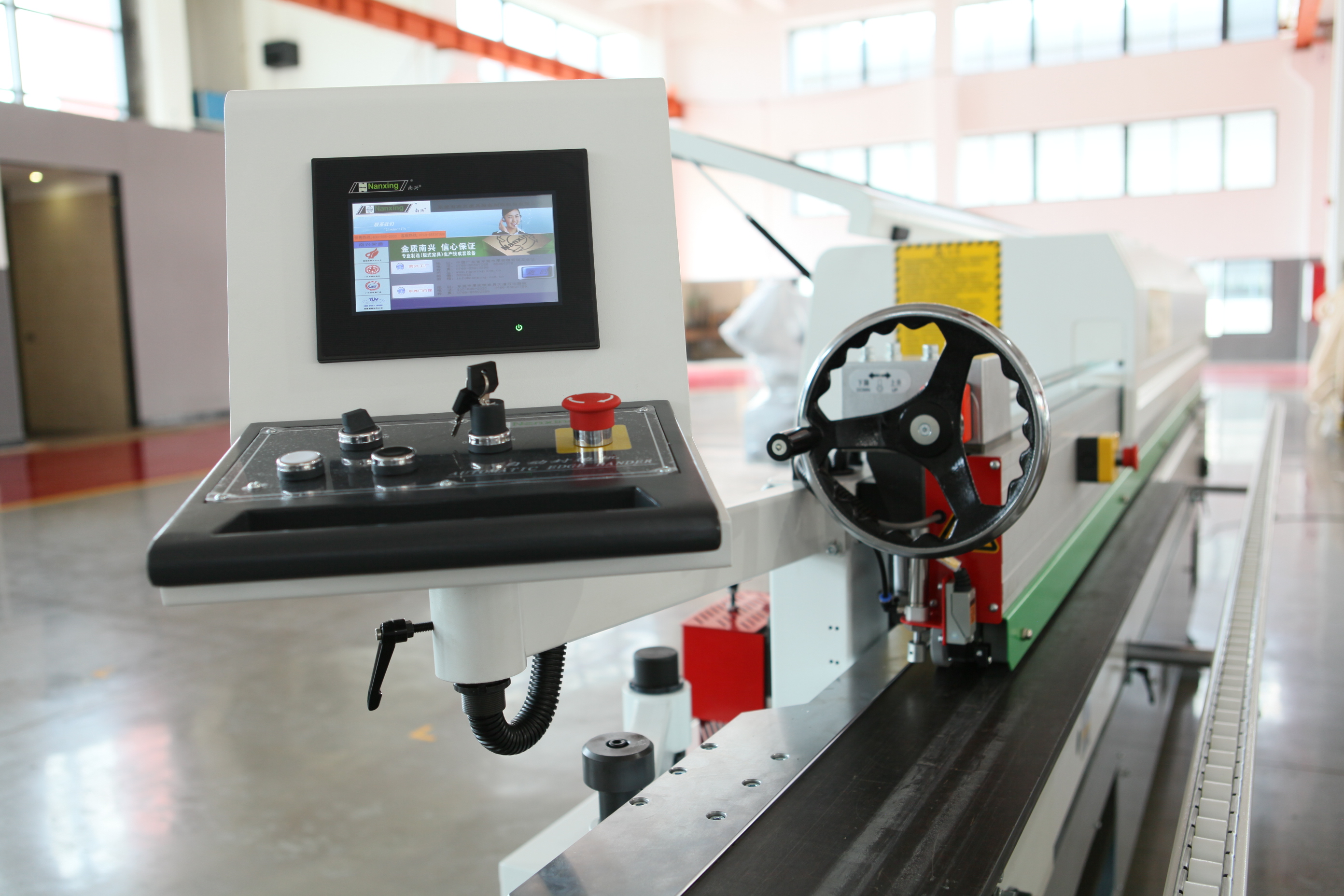

Operation system
7’’ touch screen
Dust collector
Φ125mm×2
Total power:
11.1kW
Approx. weight:
1380 kg
Overall dimension:
4050*1050*1,440 mm
