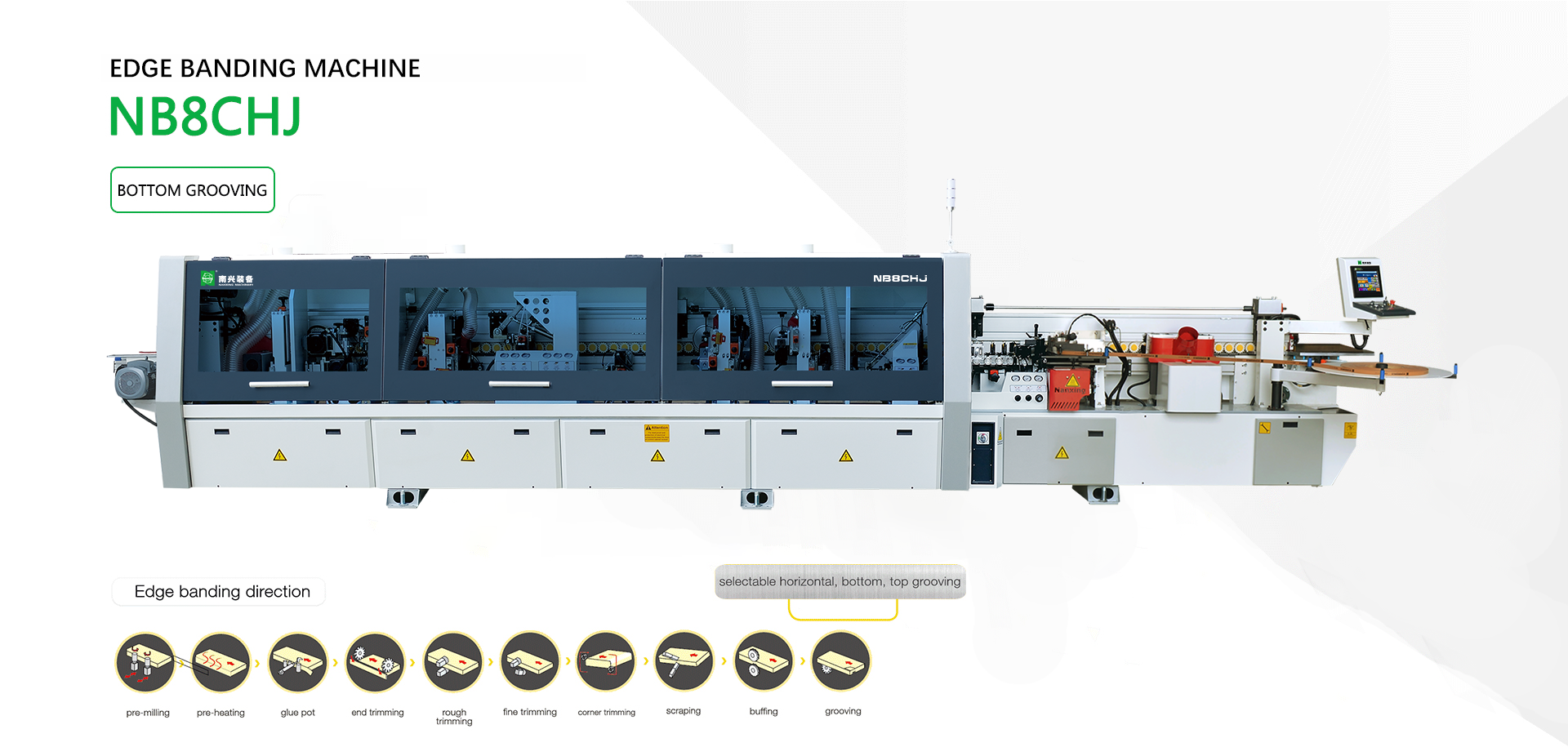

Edge Banding Machine NB8CHJ

Highlights

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Merges numerous functions in one machine, edge banding and grooving can be done in one process.
  • Automatic standby, one-button wake-up device and energy saving;
  • Most electric components are in world famous brand.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NB8CHJ

Panel length

≥120mm(corner trim on≥200mm)

Panel width

≥80mm

Min panel size

120×80mm

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

16/20/24m/min

Feeding speed(corner trimming on)

----

Dust extraction

φ125mm×5

Total power

29.3kw

Overall dimension

8260×1050×1650mm

Net weight

2980kg
