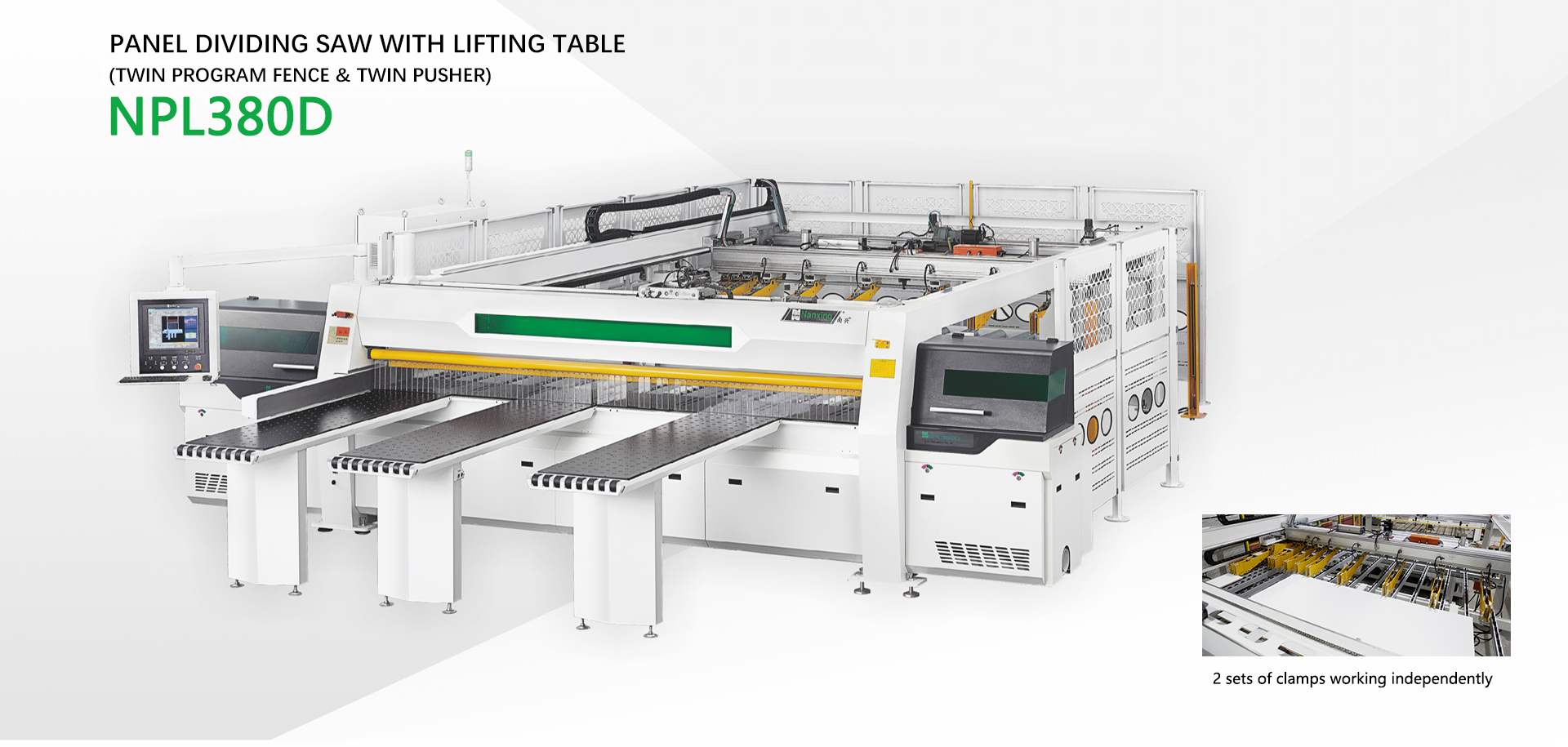

Panel Dividing Saw with Lifting Table(Twin program fence &twin pusher) NPL380D

Highlights

  • Independently working 2 sets of clamps of different functions built within machine, clamp device and pusher bar setting independently, cutting boards synchronously in different sizes either both boards by crosswise cut or combined differently with crosswise and lengthwise cut, increasing cutting capacity by 30%.
  • Both main saw and scoring saw with independent movements of up and down, also main saw automatically self-adjusted minimizing the lifting height for efficiency besides making best finish.
  • Quick exchange of main saw blade, ideal design for operator.
  • Pressure beam automatically self-adjusted according to the total height of panels, to shorten the travel range, hence higher efficiency.
  • Hydraulic rear feeding lift table with max 5t loading capacity, combined with powered and non-powered conveyors making it convenient to feed panels from left, or right side (feeding from left, right, and back side to be specified and optional).

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NPL380D

Cutting length

3800mm

Cutting thickness

120mm

Main sawrotating speed

3910rpm

Scoring saw rotating speed

4150rpm

Saw carriage forward speed

120 m/min

Saw carriage backward speed

120 m/min

Main saw motor

18.5kw

Auto feeding speed

85 m/min

Rear feeding speed

60 m/min

Dust extraction

φ150mm×3

Total power

40kw

Overall size


13384×6700×2020mm(feeding from back)
11700×9600×2020mm(feeding from rear side)


Net weight

12580kg
