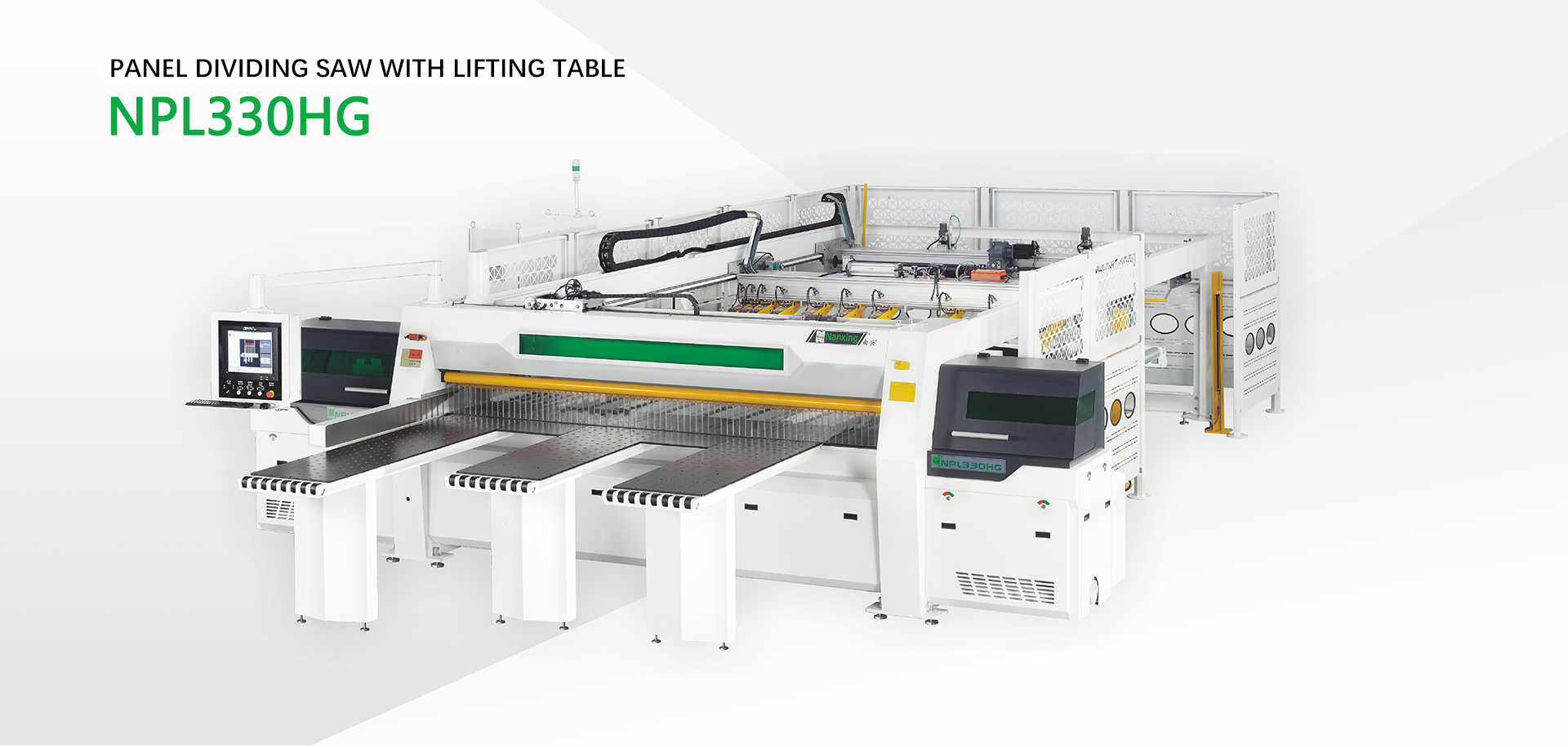

Panel Dividing Saw with Lifting Table NPL330HG

Highlights

  • Alignment automatically by independent side pressing rollers to cut right angle.
  • Both main saw and scoring saw with independent movements of up and down, also main saw automatically self-adjusted minimizing the lifting height for efficiency besides making best finish.
  • Saw carriage by 2kw servo motor along rack and pinion, automatically moved to fit based on the width of panel, reduces travel distance. Max forward speed up to 90m/min, backward speed up to 120m/min.
  • Hydraulic rear feeding lift table with max 5t loading capacity, combined with powered and non-powered conveyors making it convenient to feed panels from left, or right side (feeding from left, right, and back side to be specified and optional).
  • Powerful software so easy to use, including managing the work process with detailed reports, simulating cutting patterns, showing any error message, printing bar code and many more advantages, also user friendly HMI, making whole machine much reliable.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NPL330HG

Cutting length

3300mm

Cutting thickness

120mm

Main saw rotating speed

3910rpm

Scoring saw rotating speed

4150rpm

Saw carriage forward speed

90 m/min

Saw carriage backward speed

120 m/min

Main saw motor

18.5kw

Auto feeding speed

85 m/min

Rear feeding speed

60 m/min

Dust extraction

φ150mm×3

Total power

40kw

Overall size

9400×9200×2020mm

Net weight

12170kg
