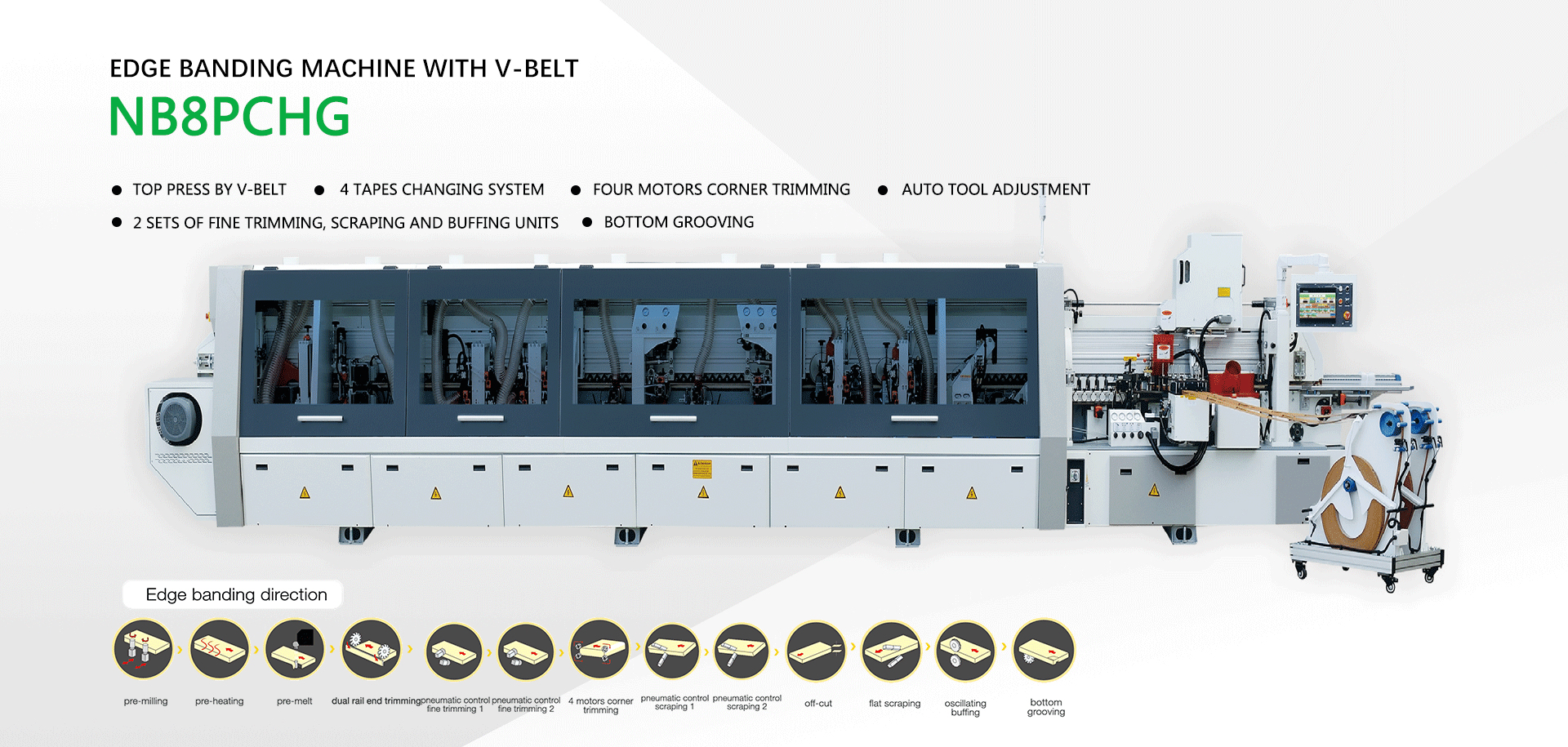

Edge Banding Machine with V-belt NB8PCHG

Highlights

  • Edge banding and bottom grooving can be done in one process.(optional side, top or skip grooving)

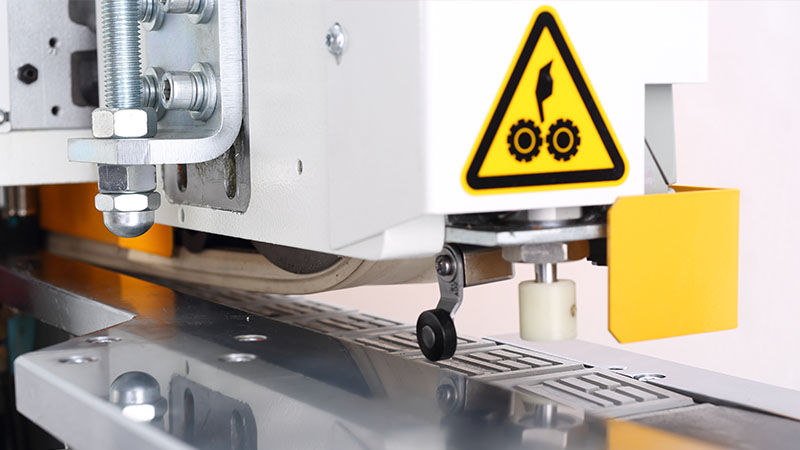

  • Panels evenly pressed by fiber reinforced V-belt to ensure smooth conveying, clean with no marks, resulting excellent edge banding quality

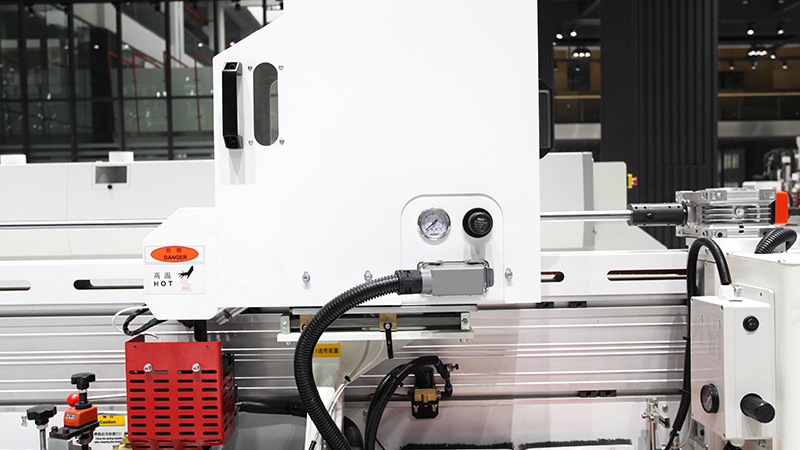

  • Pre-melt gluing unit saving heating-up time, reducing the carbonization and vulcanization from burning up of glue resins, also binding better between tape and panel.

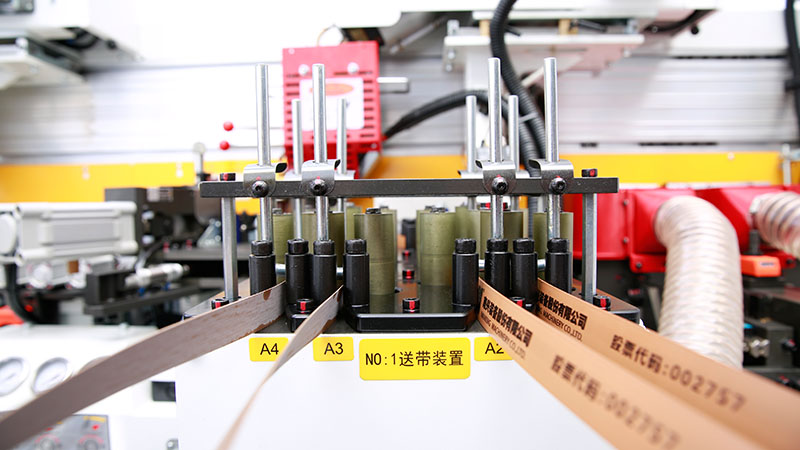

  • 4 tapes changing system with servo edge tape feeder, Compared with traditional edge tape feeder, higher trimming precision controlled by servo motor, cost saving up to RMB 20-50K per each machine due to shorter hanging out of tape at two ends.

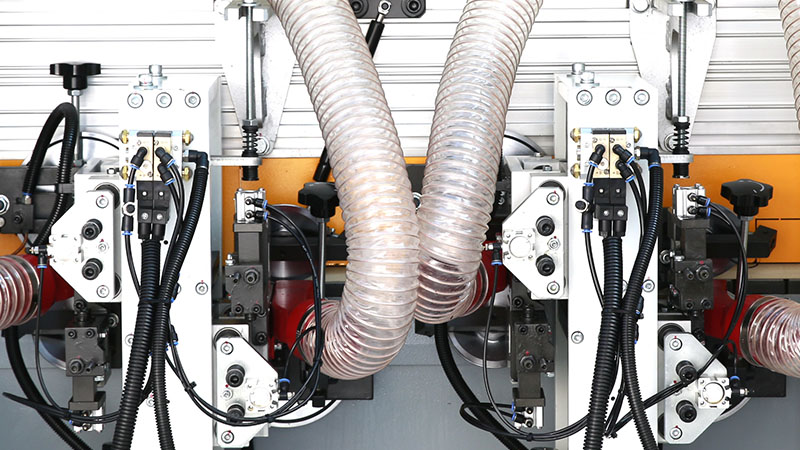

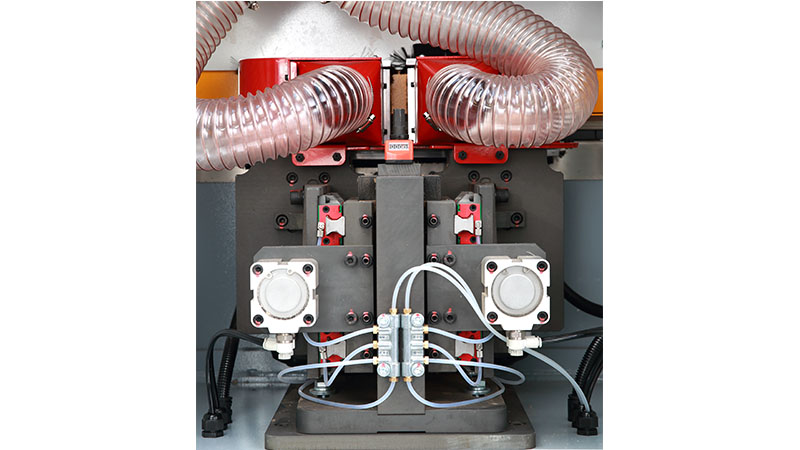

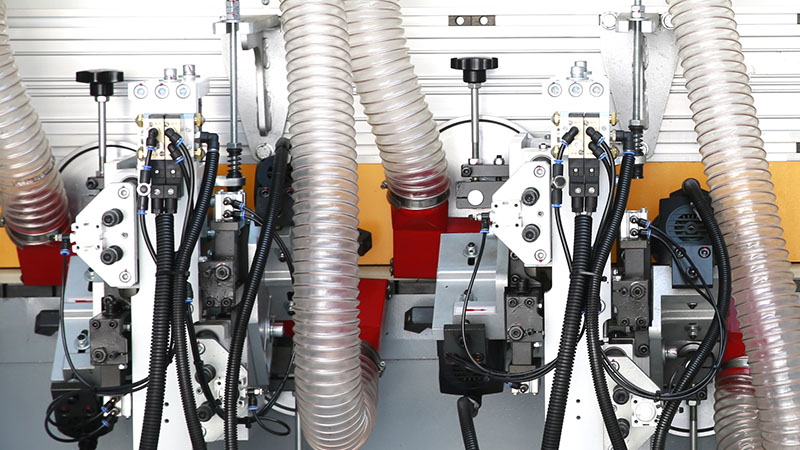

  • Fast switch between thin tape and thick tape due to adjustable 2 sets of each fine trimming units and scraping units, resulting shorter setting up time, stable quality, max convenience and higher productivity.

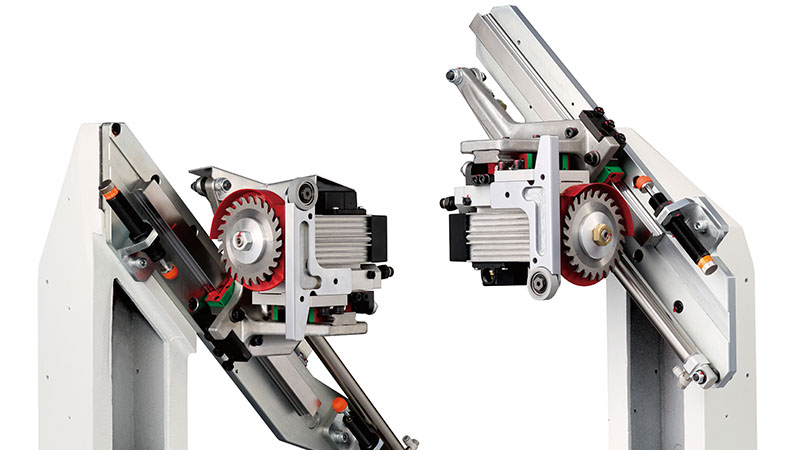

  • 4 motors corner trimming,Precise corner trimming for better finish and speed.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NB8PCHG

Panel length

≥120mm(corner trimming on≥200mm)

Panel width

≥80mm

Min panel size

200×80mm(corner trimming on)

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

18/22/26m/min

Feeding speed(corner trimming on)

22m/min

Dust extraction

φ125mm×9

Total power

39.5kw

Overall dimension

10200×1450×1650mm

Net weight

5460kg
