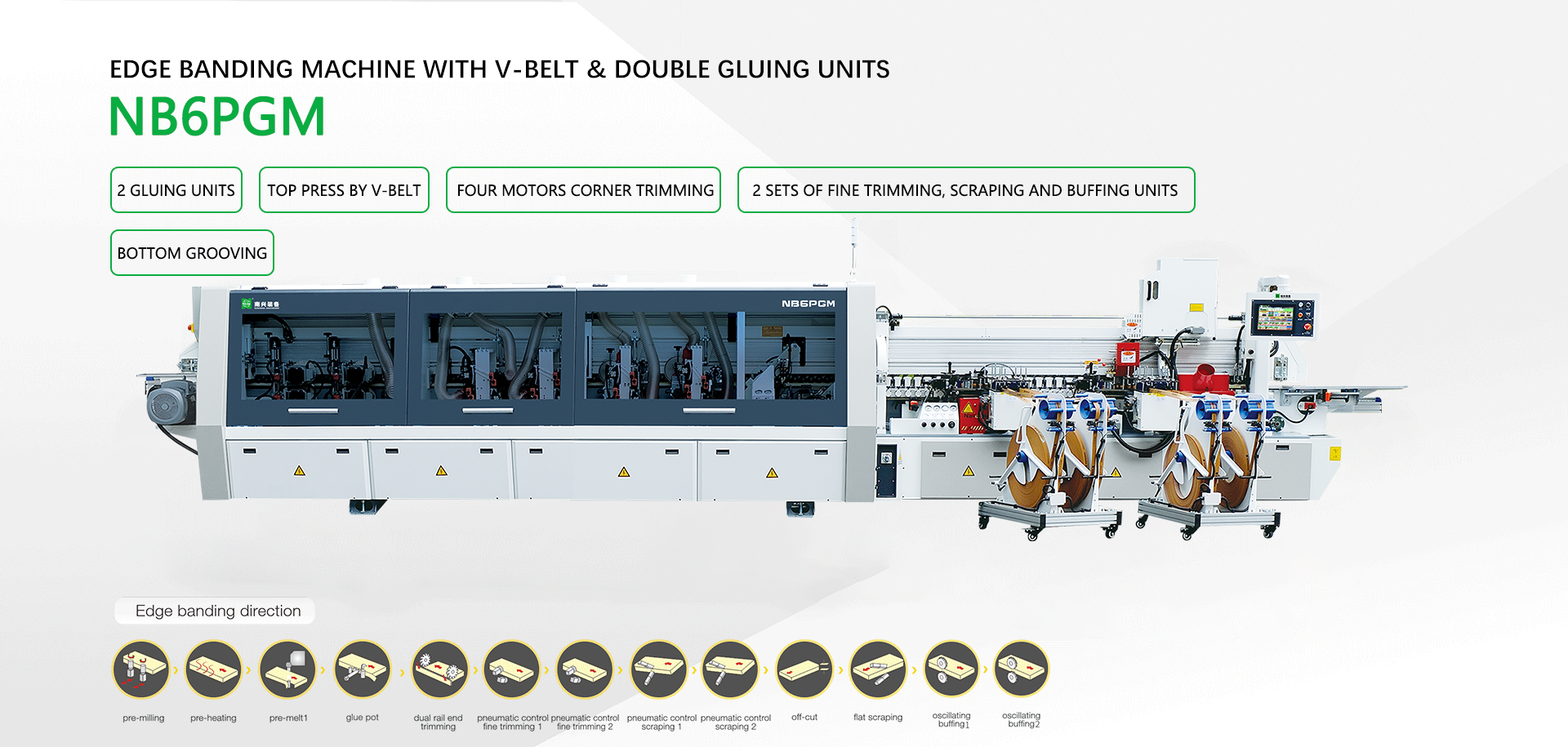

Edge Banding Machine with V-belt & Double Gluing Units NB6PGM

Highlights

  • With 2 gluing units, including one set of glue pot and one pre-melt glue, switching from one of two glue colors to match edge tape, optional to choose PUR or 2 sets of pre-melt.
  • Panels evenly pressed by fiber reinforced V-belt to ensure smooth conveying, clean with no marks, resulting excellent edge banding quality
  • Pre-melt gluing unit saving heating-up time, reducing the carbonization and vulcanization from burning up of glue resins, also binding better between tape and panel.

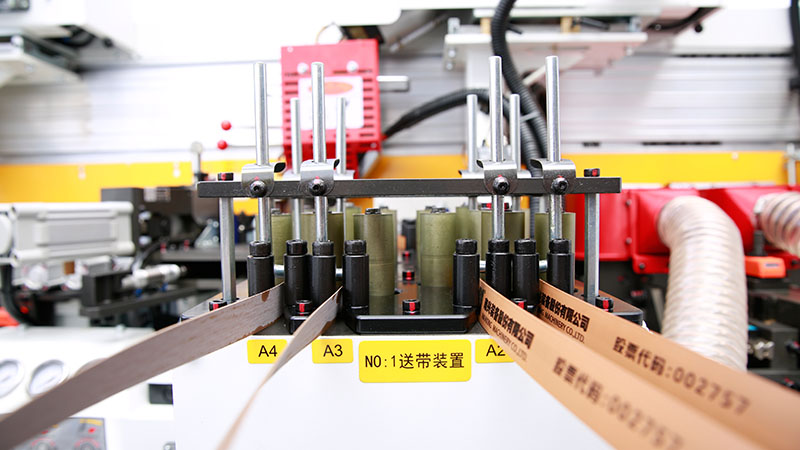

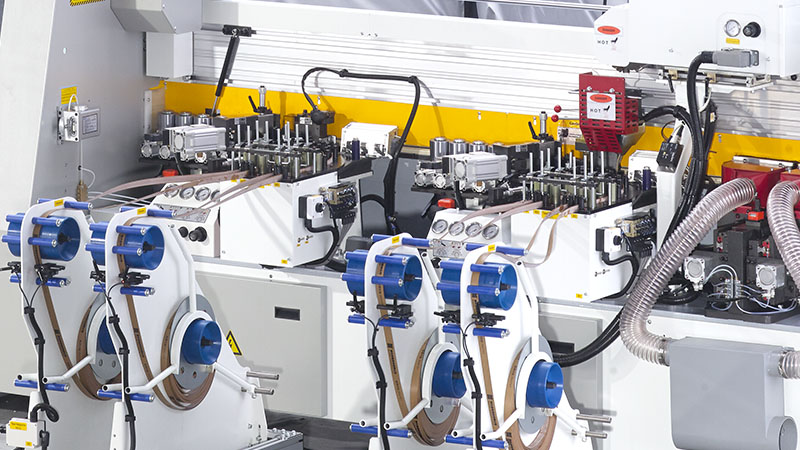

  • 8 tapes changing system with servo edge tape feeder, Compared with traditional edge tape feeder, higher trimming precision controlled by servo motor, cost saving up to RMB 20-50K per each machine due to shorter hanging out of tape at two ends.

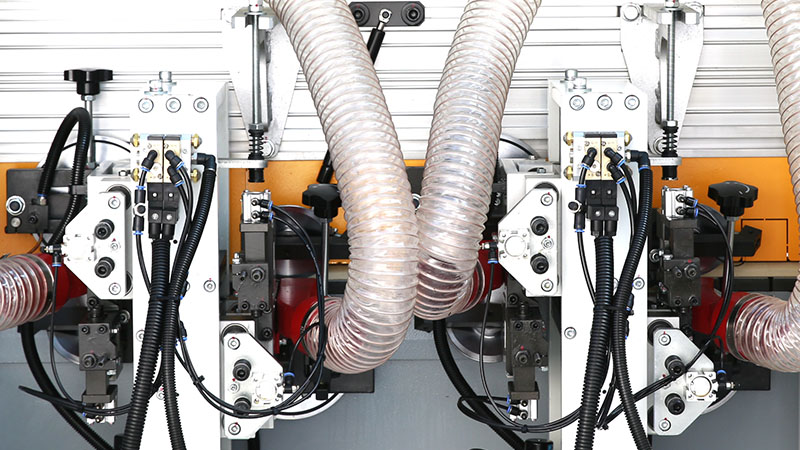

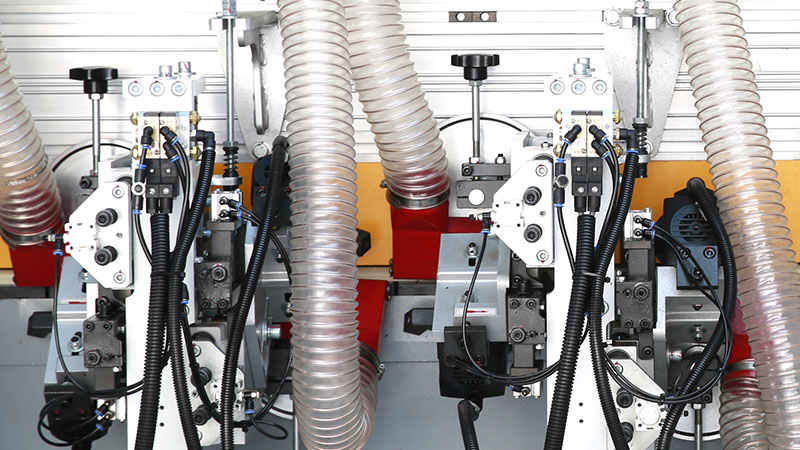

  • Fast switch between thin tape and thick tape due to adjustable 2 sets of each fine trimming units and scraping units, resulting shorter setting up time, stable quality, max convenience and higher productivity.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NB6PGM

Panel length

≥120mm

Panel width

≥80mm

Min panel size

120×80mm

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

18/22/26m/min

Feeding speed(corner trimming on)

----

Dust extraction

φ125mm×6

Total power

36kw

Overall dimension

9650×1050×1850mm

Net weight

4750kg
