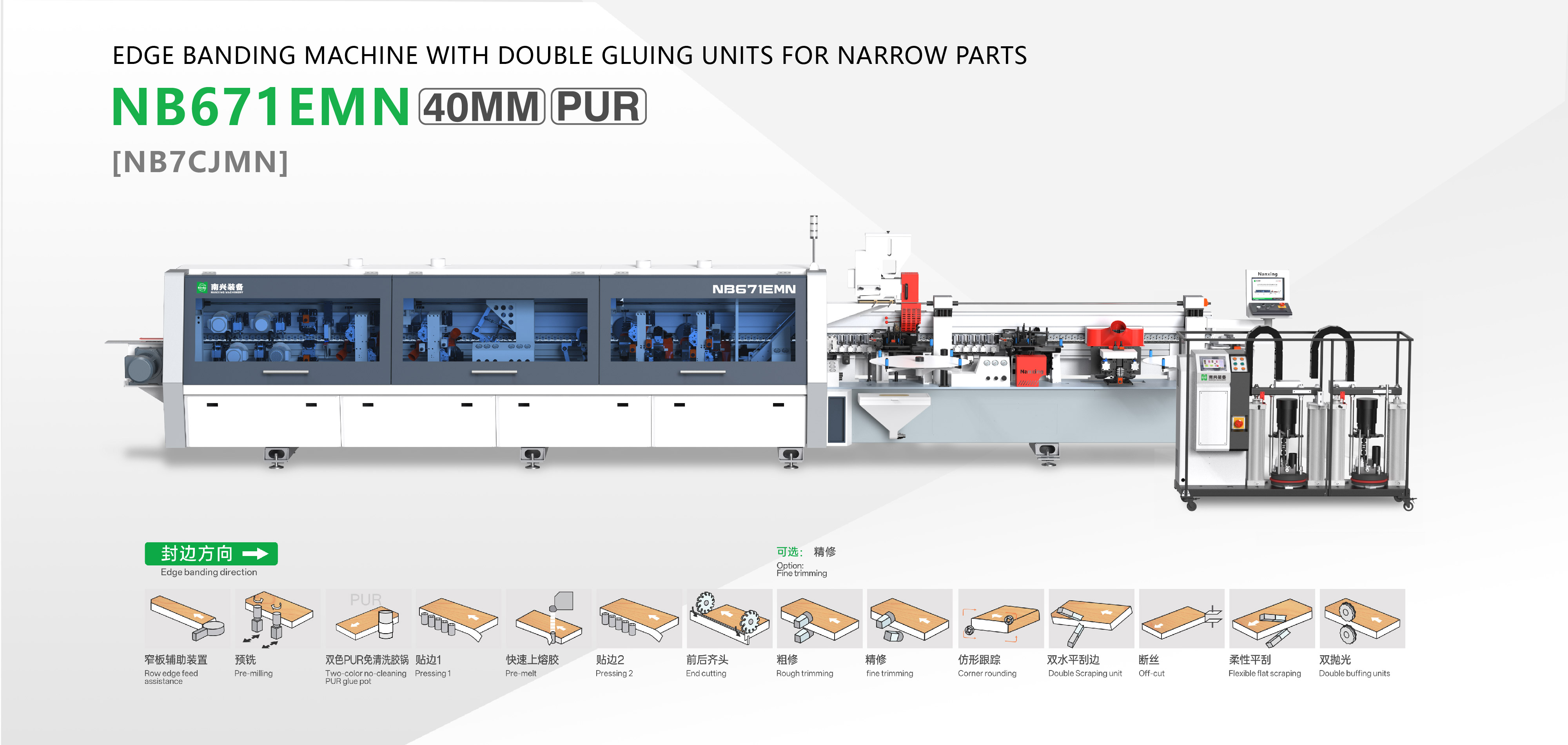

Edge Banding Machine with Double Gluing Units for Narrow Edge NB671EMN(NB7CJMN)

Highlights

  • Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do narrow edge banding work.
  •  Two sets of gluing, 2 sets fine trimming, 2 sets scraping and 2 sets buffing make it easy and fast to switch between dark and light color glue and 2 tape thickness which meet flexible edge banding requirements.
  • Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com Information form

Model

NB671EMN

Panel length

≥120mm


Panel width

≥40mm

Min panel size

120x120mm(4 sides)

 200x40mm (long edge)

 40x200 (short edge)

Panel thickness

≤25mm

Edge tape thickness

0.4-3mm

Feeding speed

16/20/24m/min

Total power

33.7kw

Overall dimension

  9400×1050×1850mm

Net weight 3470KG
