such as wood mortise holes, wood door frames, cabinet door frames, chair legs, etc.
The drill kit is a CNC three-axis drill, which can be equipped with drill nozzles of
time.
Workpiece thickness is automatically adjusted by servo;Wood tenon with arbitrary
thickness and spacing can be implanted.
The machine is equipped with a 45 degree diagonal ruler, which can be used to punch
Nanxing Headquarters in Dongguan China
跨度可达16米,运输长度可达50米及更高值

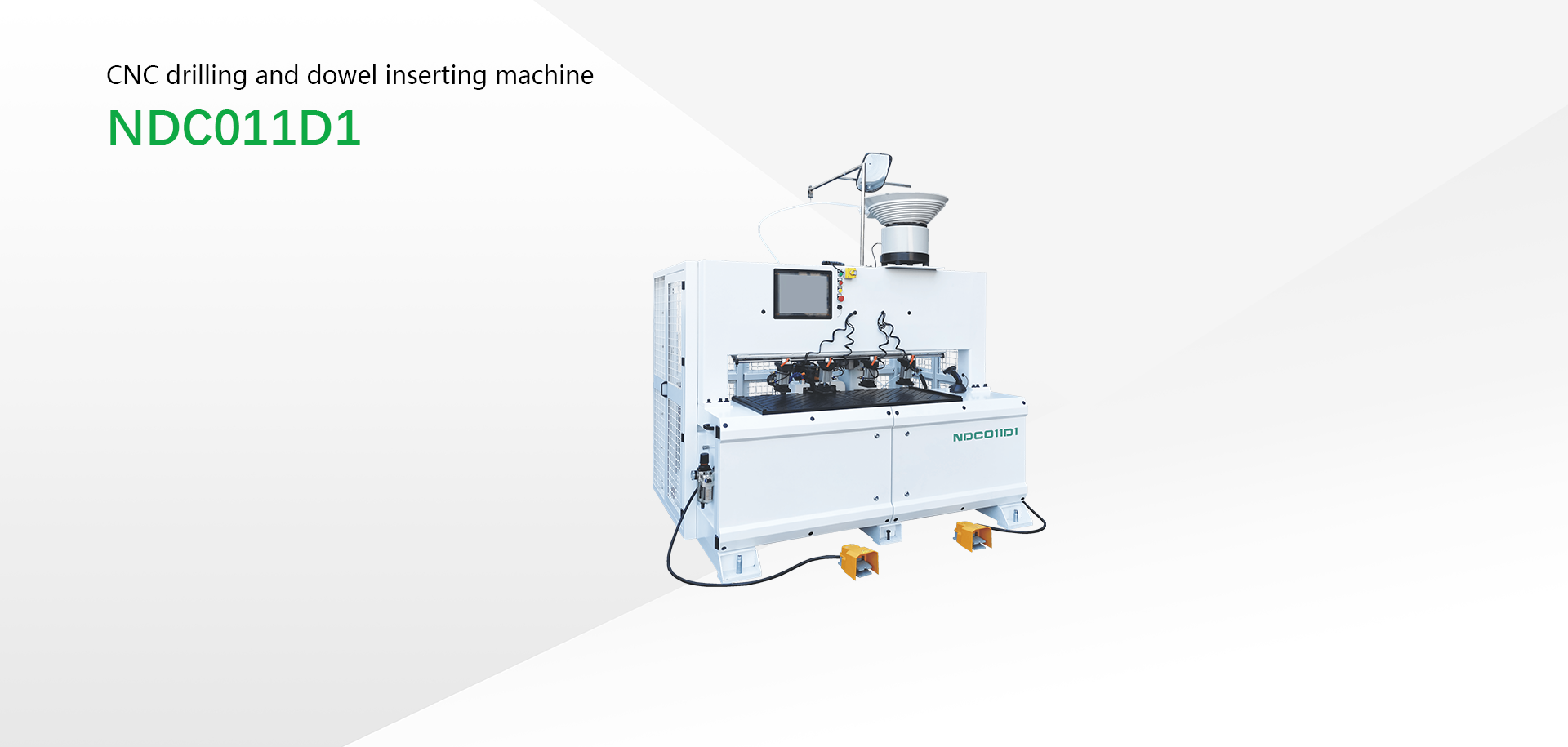

Model
NDC011D1
Max panel width
1200 mm
Min. panel width
50 mm
Max. panel thickness
10-40mm
Max feeding speed
78m/min
Vertical drills qty.
4 rows*11*2=88
Horizontal drills qty.
2 rows *21=42
Spacing of drills
32mm
Servo motor qty.
Max vertical boring depth
mm
Max horizontal boring depth
Total power
3Kw
Approx. weight
1200 kg
Overall dimension
2000*1620*1600 mm
