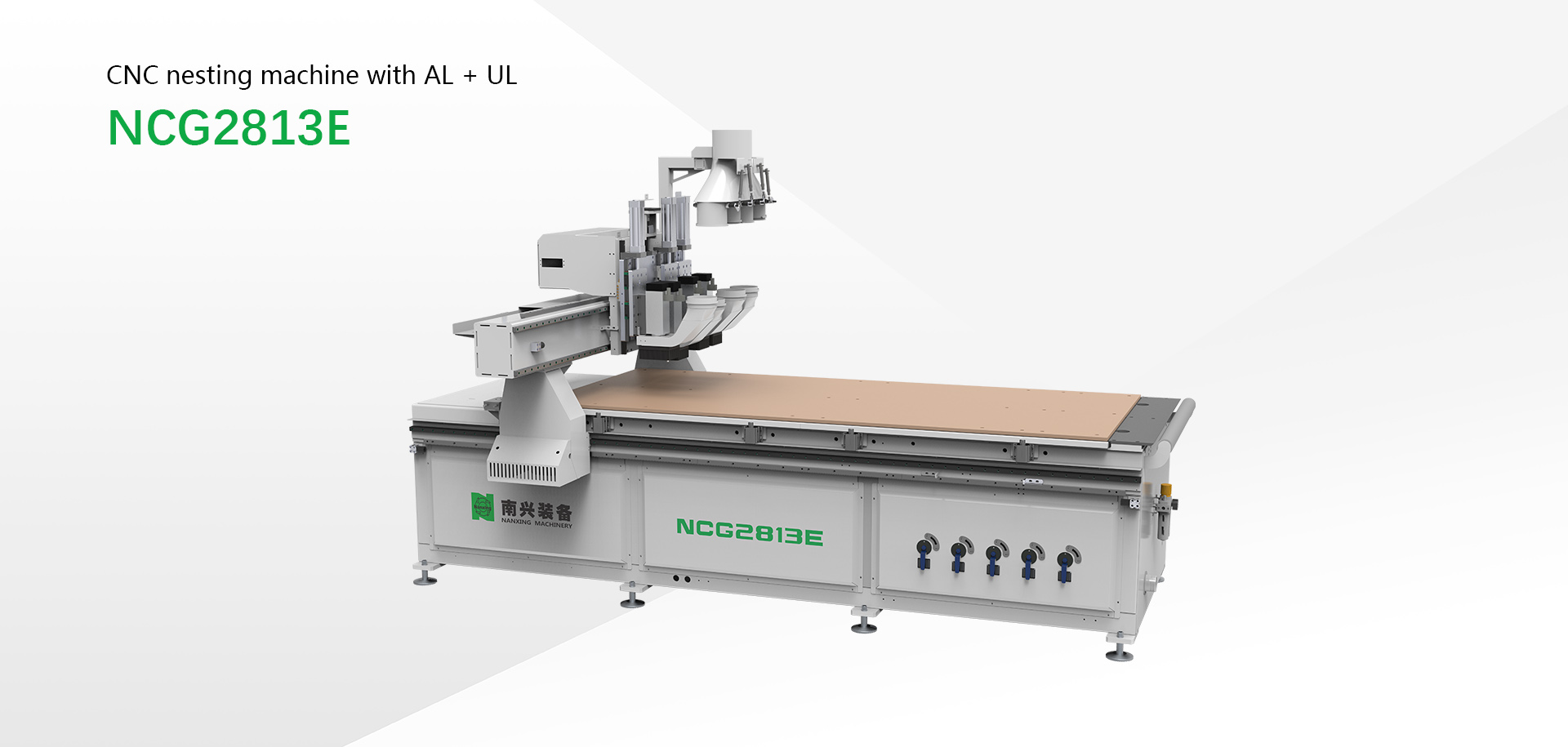

NCG2813E with 4 high-speed main spindles is able to meet various processing requirements like nesting, shaping, grooving, top side boring. Max. speed along X & Y direction up to 50m/min, auto feed-in and out table improve the efficiency, save labor. IPC control with window 7 operation system of high stability and ease of operation.
Model
NCG2813E
Table size
2800×1230mm
Max speed
50/50/20 m/min
Main spindle power
6kw×1
3.5kw×3
Max rotating speed
18000rpm
Vacuum pump
7.5kw
Suction flow rate
250m3/h
Dust extraction
φ200mm
Total power
28kw
Overall dimension
3800×2300×2400mm
Net weight
2100kg
