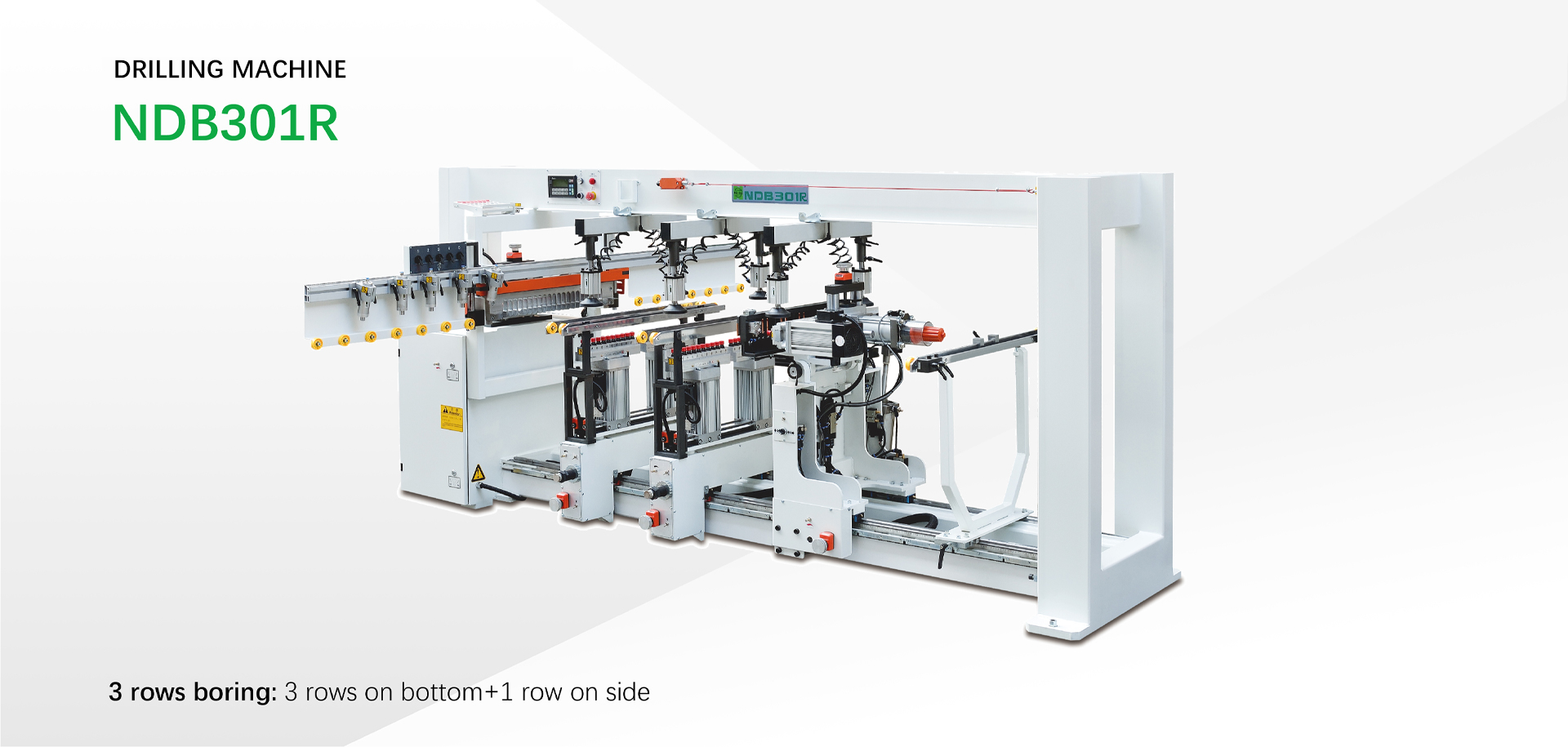

Drilling Machine NDB301R-Rotatable Side Row

Highlights

  • One side row can rotate 90 degrees to do vertical drill instead;
  • Vertical drills:11*2*3=66 horizontal drills:21

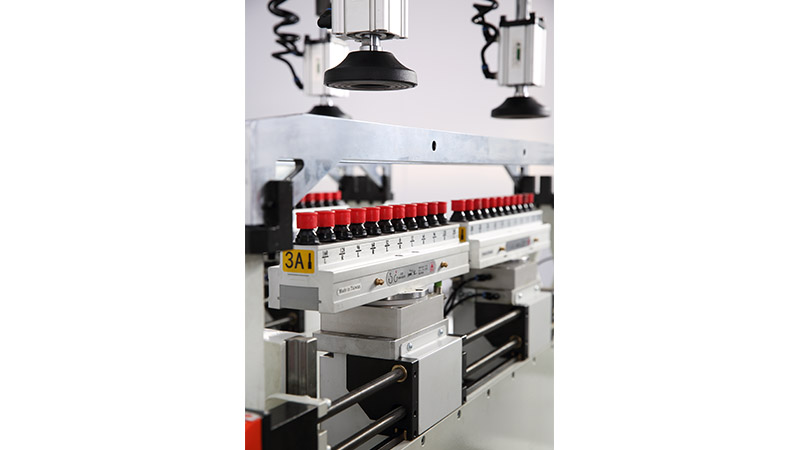

  • The quick-change drill bit is used on each row of multi-drill , which greatly improves the production efficiency of the multi-drill;
  • Multi-row drill bit spacing is 32mm;

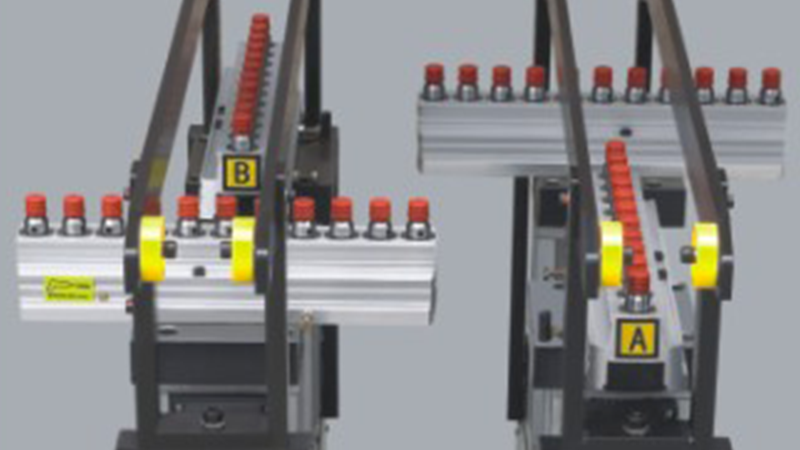

  • The bottom vertical drill row uses two independent drill rows, two independent motors, and the drill row can be rotated 90° independently.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NDB301

Max panel width

2500mm

Min. panel width

90mm

Max. panel thickness

70mm

Spacing of drills

32mm

Max vertical boring depth

70mm

Max horizontal boring depth

40mm

Total power

9.2kw

Overall dimension

3460×2835×1575mm

Approx. weight

1300kg
