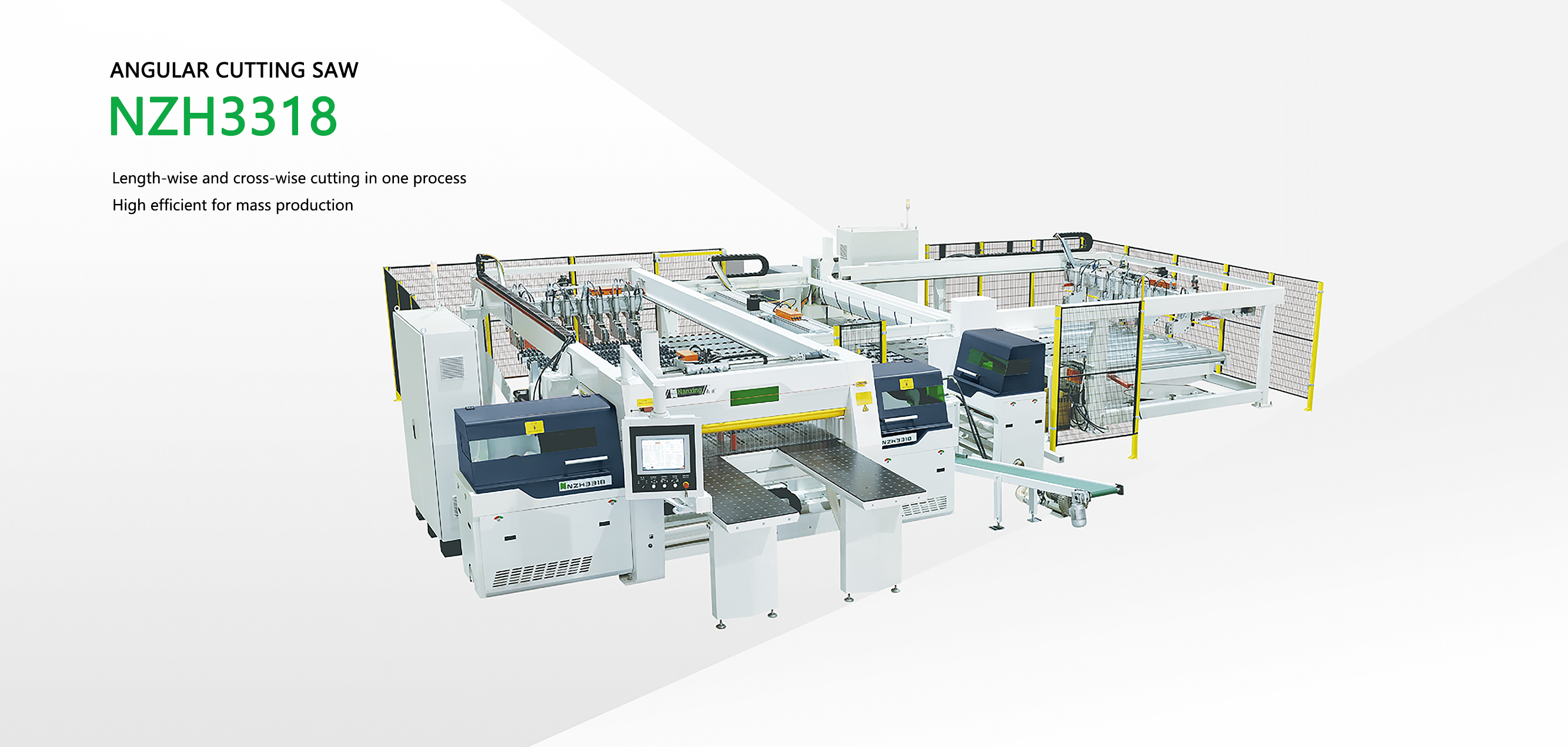

Angular Saw NZH3318

Automatic lengthwise and crosswise under desired sequential cutting within the angular saw in one process, suitable for mass cutting;
Maximum cutting thickness up to 120mm;
Selected 18kw Italian main saw motor;
Heavy duty rear feeding hydraulic lifting table;
IPC control center plus Nanxing operation and optimizing software to make the angular saw, possible for infotech production.

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model	NZH3318
Max lengthwise cutting length	3300mm
Cutting crosswise cutting length	1800mm
Cutting thickness	120mm
Main saw motor power	18kw×2
Main saw motor rotating speed	3910rpm
Scoring saw rotating speed	4150rpm
Auto feeding speed	85m/min
Saw carriage forward speed	85 m/min
Saw carriage backward speed	100 m/min
Rear feeding speed	60 m/min
Dust extraction	φ150mm×6
Air blower	3*2.2kw
Overall size	9200x11600x2020mm
Net weight	19000kg
Clamp qty	Lengthwise saw 6pcs crosswise saw 8pcs
Total power	73.5kw
