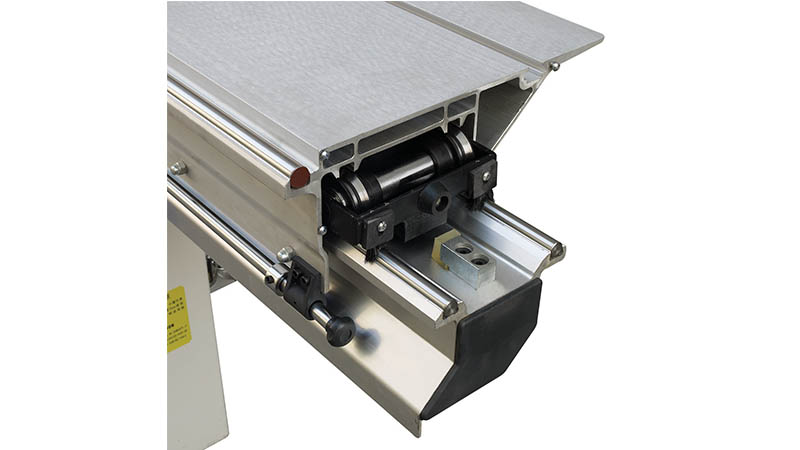

Sliding table
NC control

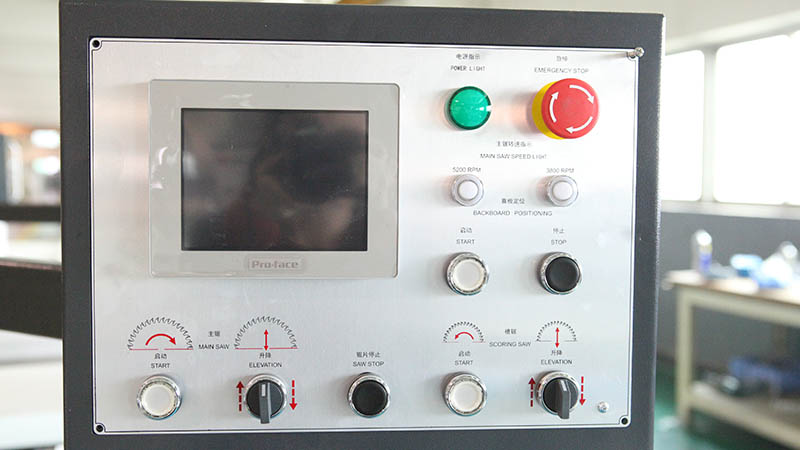

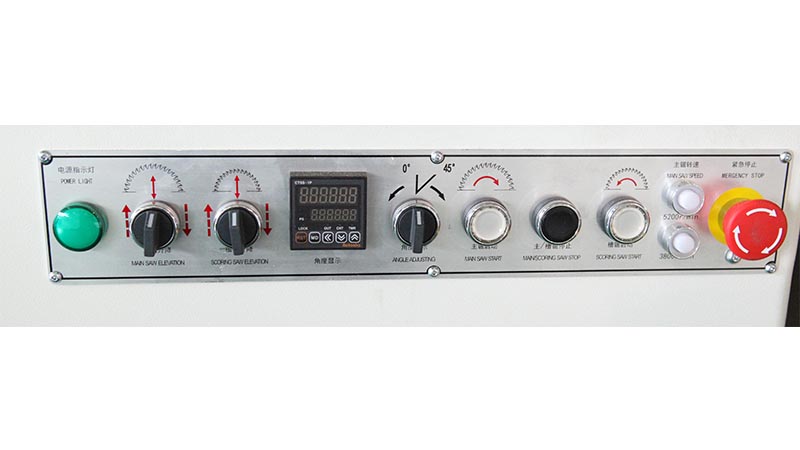

Operation panel
Transverse baffle

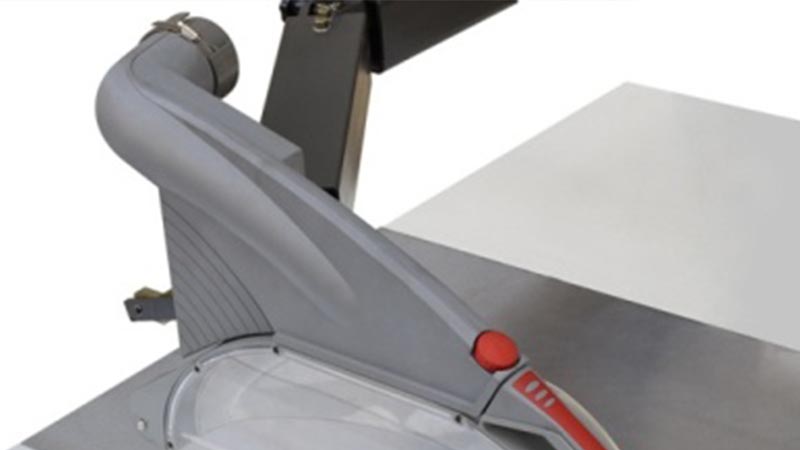

European big dust extraction cover
Nanxing Headquarters in Dongguan China
跨度可达16米,运输长度可达50米及更高值

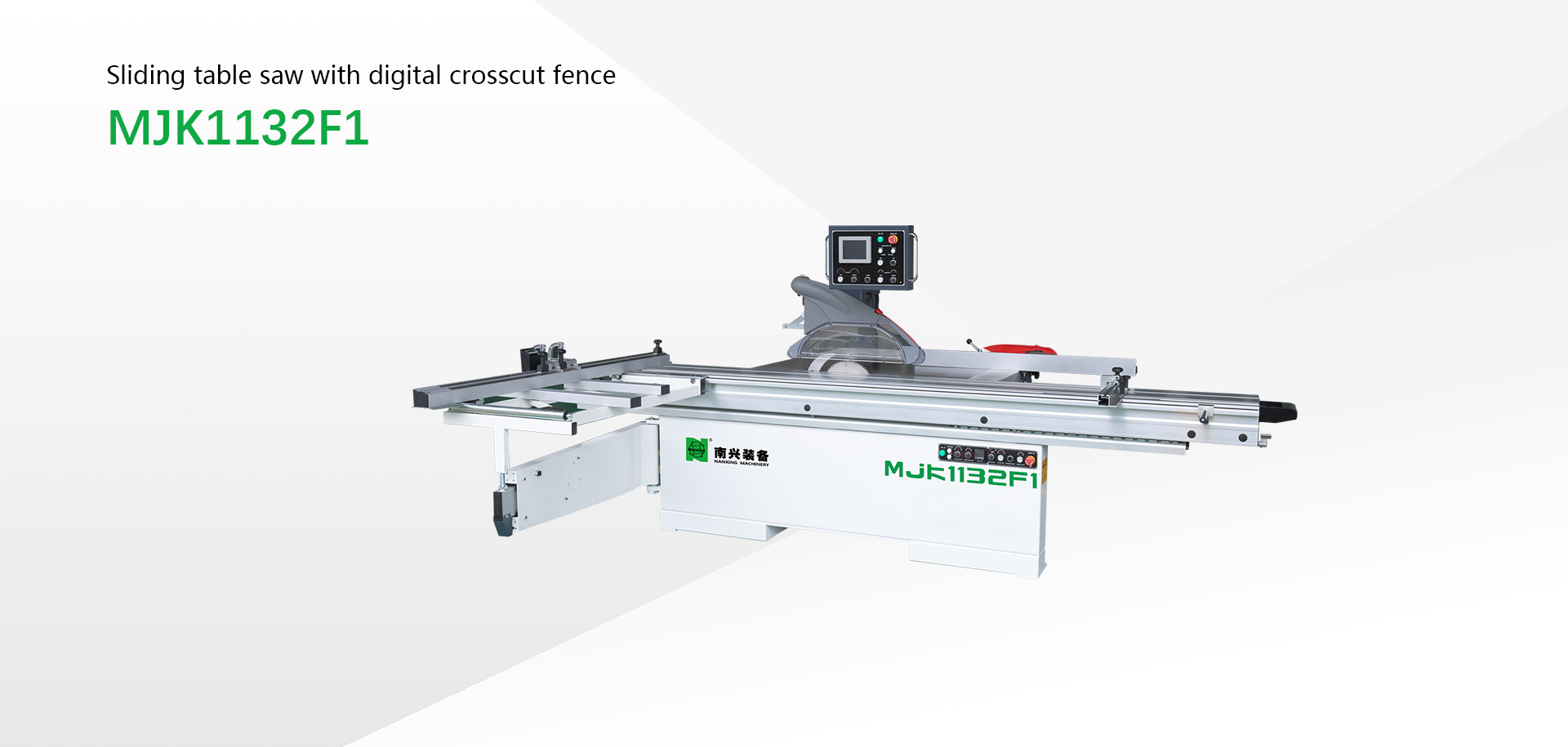

Model
MJK1132F1
Cutting length
3100mm
0°cutting thickness
100mm
45°cutting thickness
70mm
Main saw rotating speed
3800/5200rpm
Main saw motor
5.5kw
Scoring saw rotating speed
9000rpm
Scoring saw motor
1.1kw
Saw blade tilting
0-45°
Dust extraction
φ120mm
Total power
7kw
Overall size
3400×3400×1680mm
Net weight
1000kg
