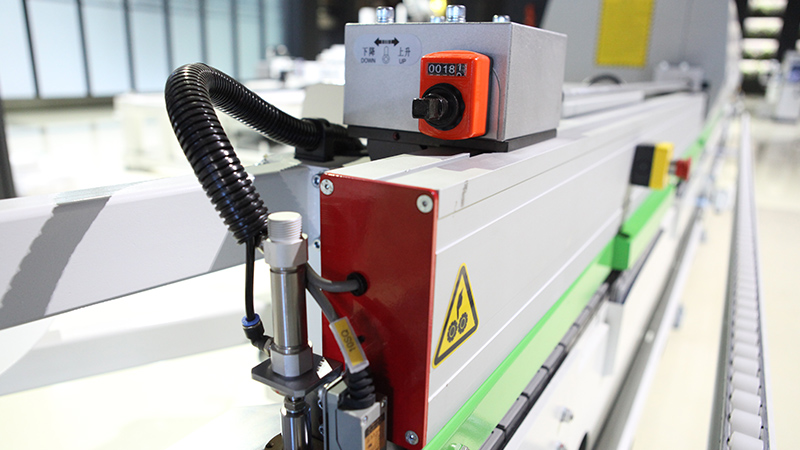

Up and down of pressure beam is automatic

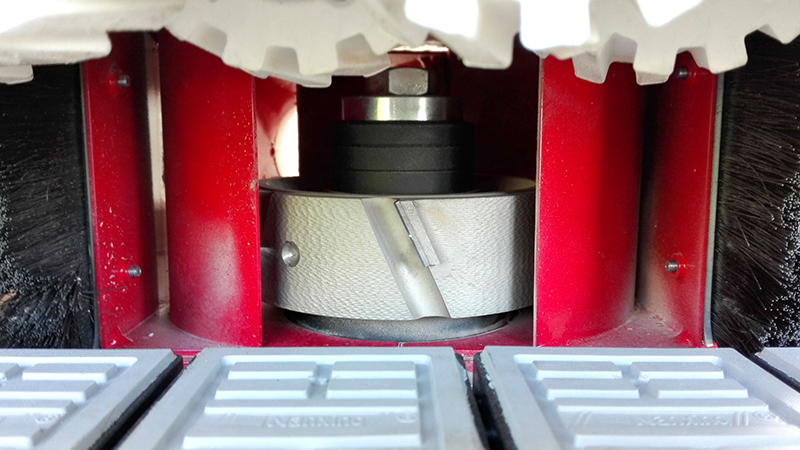

Pre-milling-cutters-in-diamend-blades to ensure smooth workpiece edge

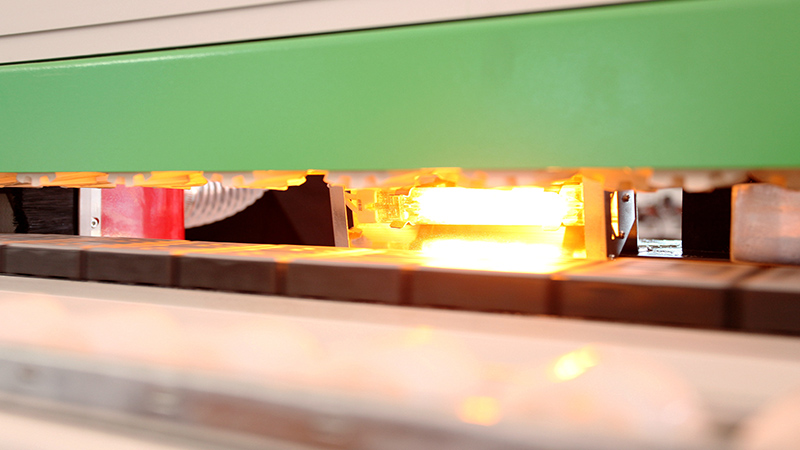

Pre-heating is designed for zone in wet and lower temperature

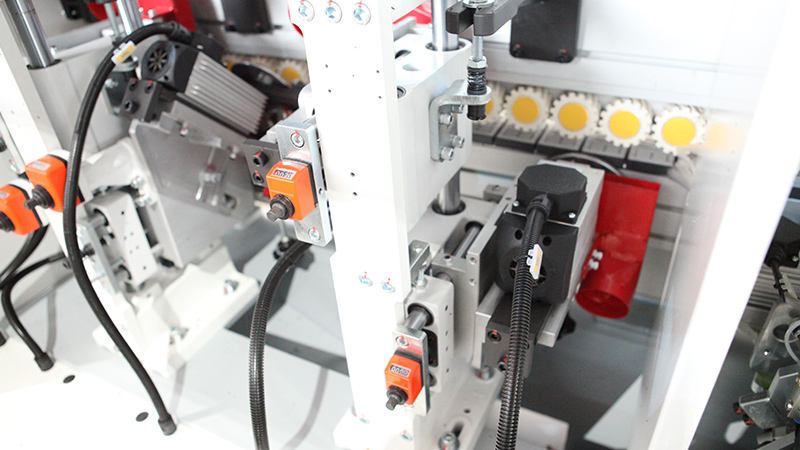

Rough and fine trimming

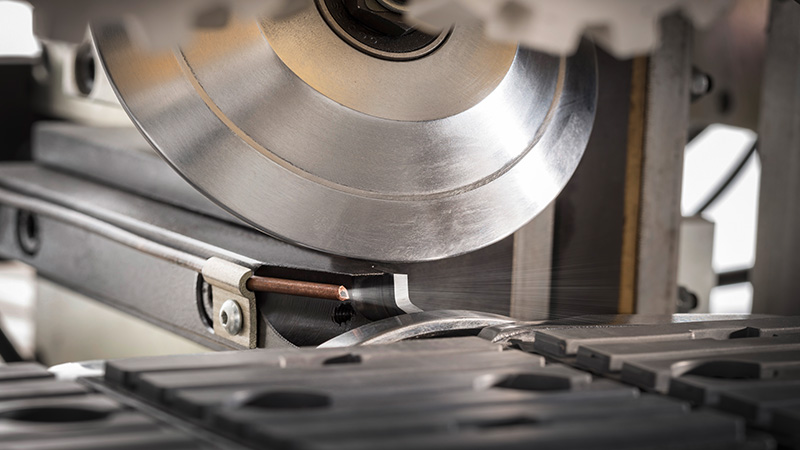

Corner trimming
Scraping with air jet
Nanxing Headquarters in Dongguan China
跨度可达16米，运输长度可达50米及更高值

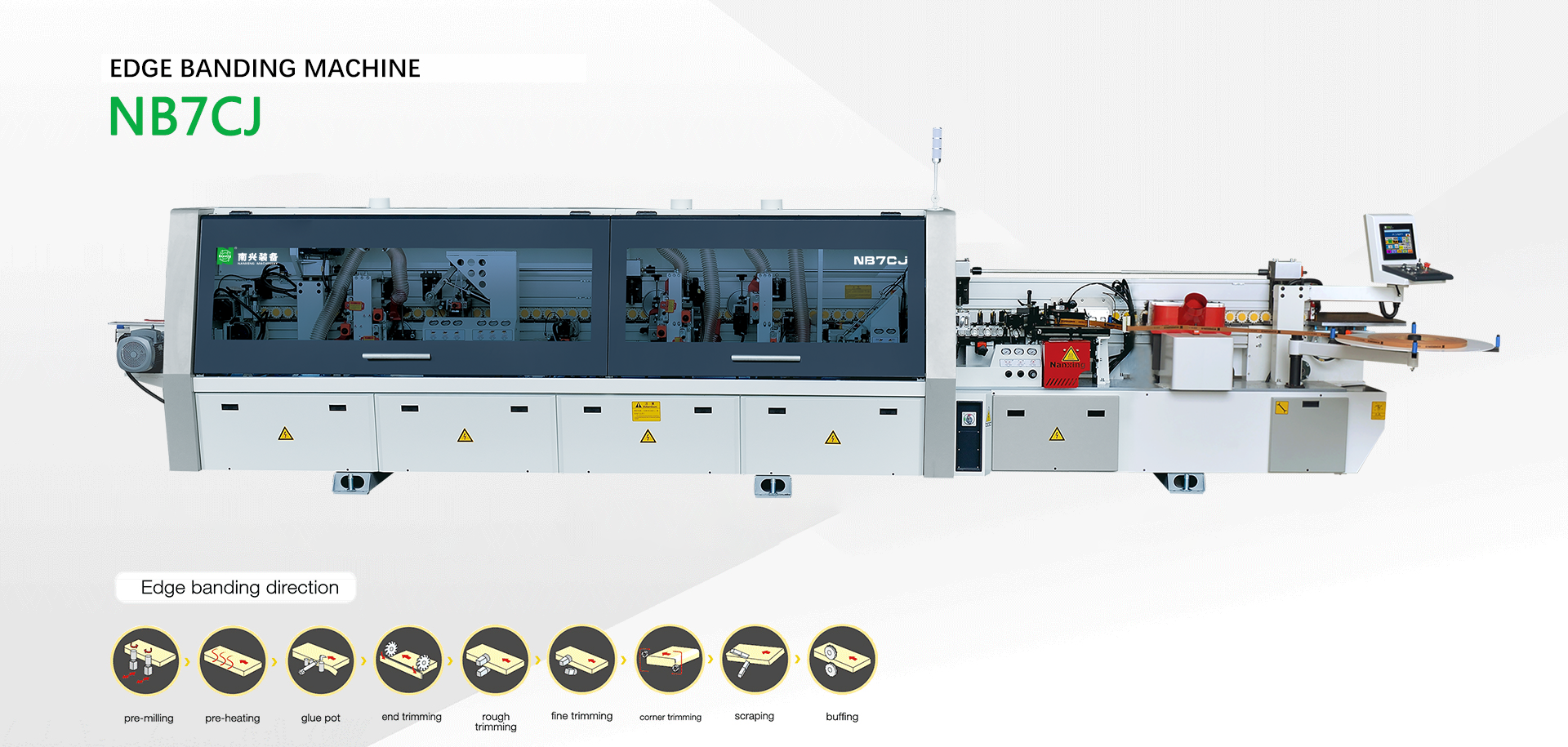

Model
NB7CJ
Panel length
≥120mm（开跟踪≥200mm）
Panel width
≥80mm
Min panel size
120×80mm
Panel thickness
9-60mm
Edge tape thickness
0.4-3mm
Feeding speed
16/20/24m/min
Feeding speed(corner trimming on)
----
Dust extraction
φ125mm×4
Total power
24kw
Overall dimension
7700×1050×1650mm
Net weight
2800kg
