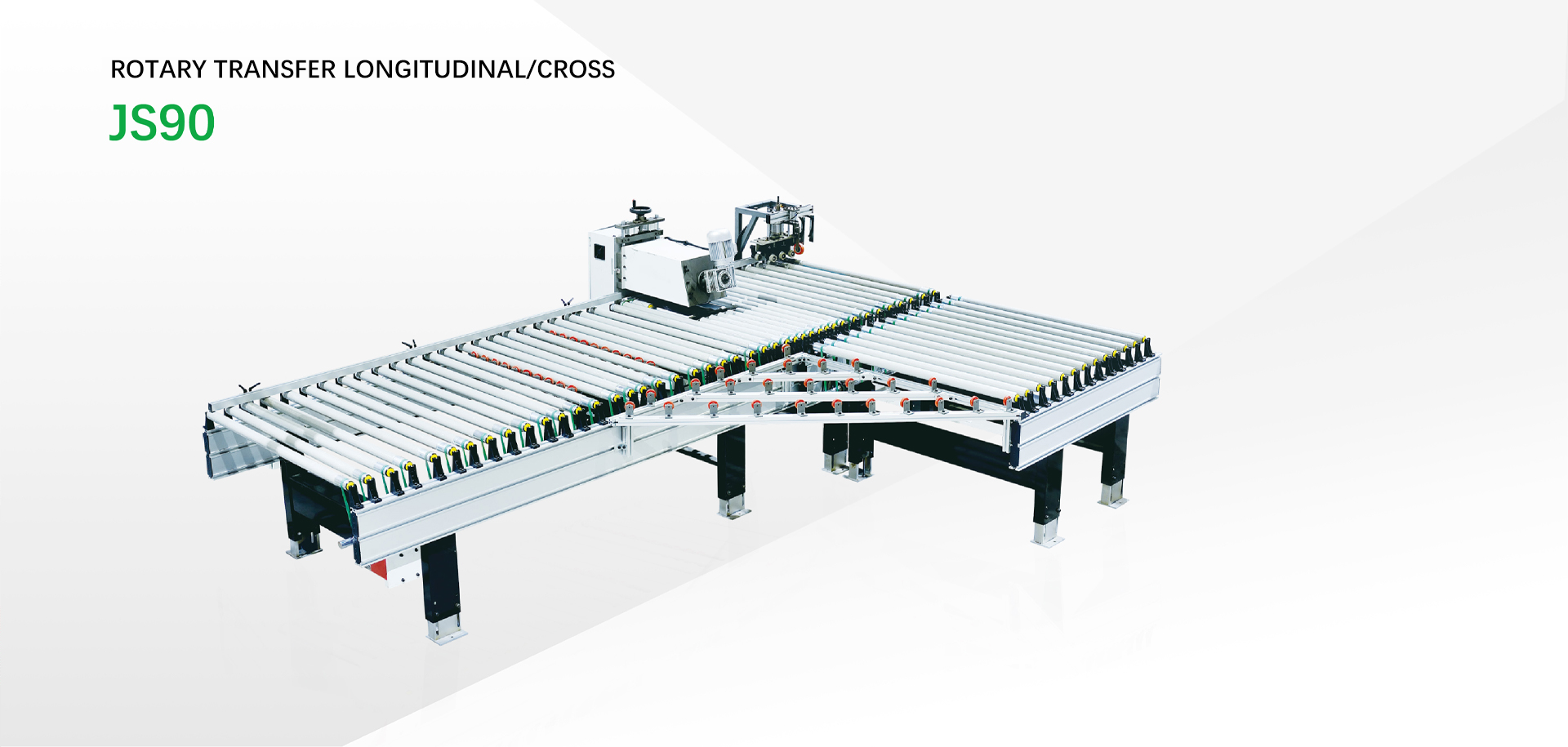

Rotary transfer longitudinal/cross JS90

Highlights

  • 90°turner equipment, easy to link within automation line, save labour;
  • Rubber conveyor rollers and wheels with enough friction to limit workpieces direction precisely;
  • Powerful software so easy to use, including managing the work process with detailed reports, simulating cutting patterns, showing any error message, printing bar code and many more advantages, also user friendly PC, making whole machine much reliable.
  • turning direction is optional . Also 2.83m, 3.78m, and touch screen.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

JS90

JS90R

JS90A

JS90AR

Conveying speed

10-25m/min

10-25m/min

10-25m/min

10-25m/min

Panel thickness

9-60mm

10-60mm

10-60mm

10-60mm

Panel length

250-2440mm

250-2440mm

250-2440mm

250-2440mm

Panel width

250-1220mm

250-1220mm

250-1220mm

250-1220mm

Table height

900±50mm

900±50mm

900±50mm

900±50mm

Total power

2.5kw

2.5kw

2.5kw

2.5kw

Overall dimension

5700×3100×1760mm

5700×3100×1760mm

5700×3100×1760mm

5700×3100×1760mm

Net weight

700kg

1150kg

1150kg

1150kg
