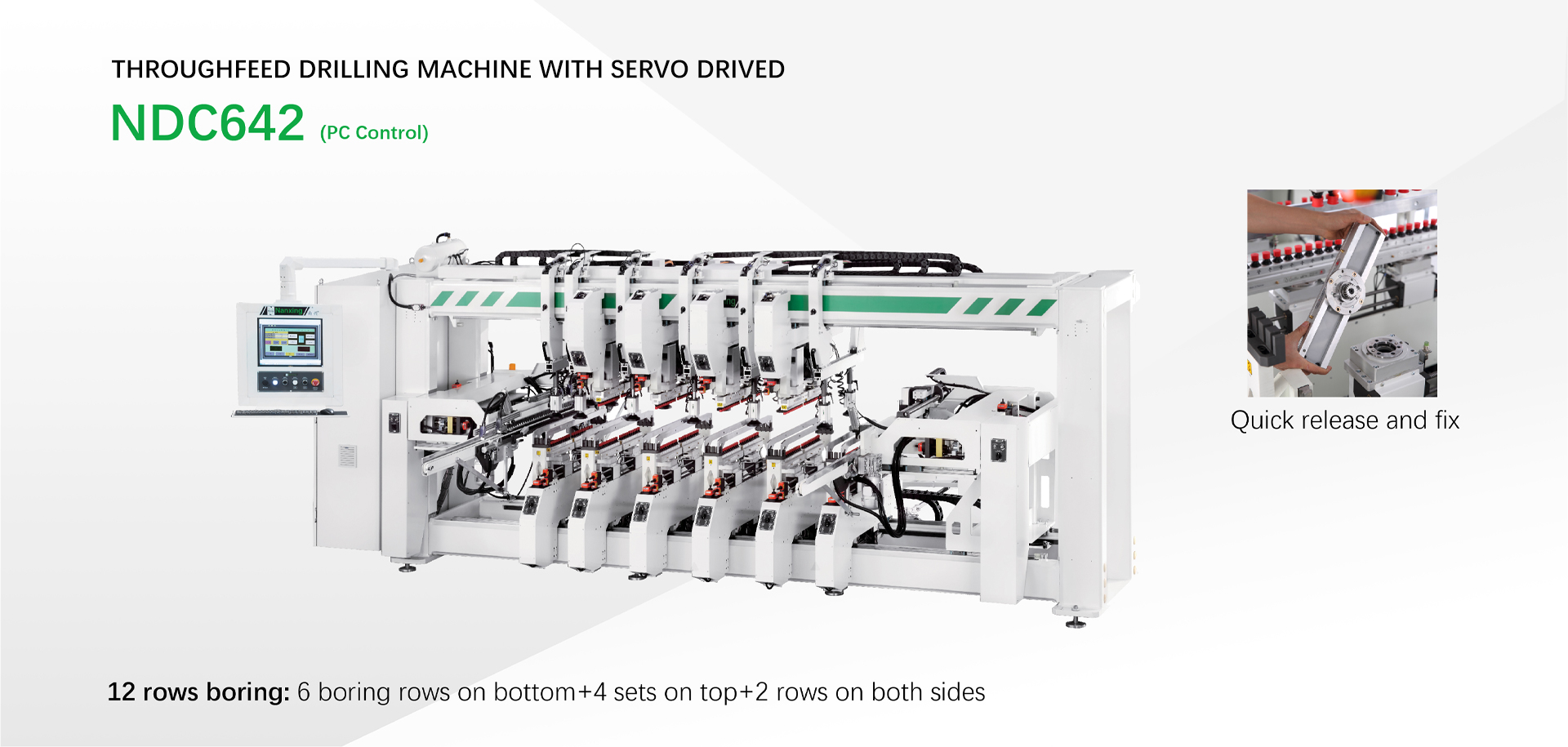

Throughfeed Drilling Machine with Servo Drived NDC642-PC Control

Highlights

  • Auto 12 Rows Boring Machine is recommended to use for mass production even with frequent adjustments of boring hole patterns from time to time by furniture companies. Movement of vertical boring rows is easy, fast and precise by servo motor corresponding to rack and pinion. IPC controlled, vertical rows move automatically on the basis of hole position drawings thus the machine is easy to set in production line
  • Auto feed-in and feed-out with 3 sections, positioning by servo motor. Totally 13 servo motors on this machine
  • Pneumatic locking device applied at vertical rows, for adjusting or changing of drilling block much faster and precise; Boring blocks with this flexibility can make different boring hole pattern easy.
  • 6 rows on bottom, 4 top rows and 2 rows on side make it possible to boring 4 sides in one process, up to 22pcs work pieces per minute
  • Option: NDC532---5 rows on bottom, 3 top rows and two rows on side

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NDC532

NDC642

Max panel width

2550mm

2550mm

Min. panel width

250mm

250mm

Max. panel thickness

50mm

50mm

Spacing of drills

32mm

32mm

Max vertical boring depth

50mm

50mm

Max horizontal boring depth

40mm

40mm

Total power

40kw

47kw

Overall dimension

5540×3660×2200mm

5540×3660×2200mm

Approx. weight

6700kg

7100kg
