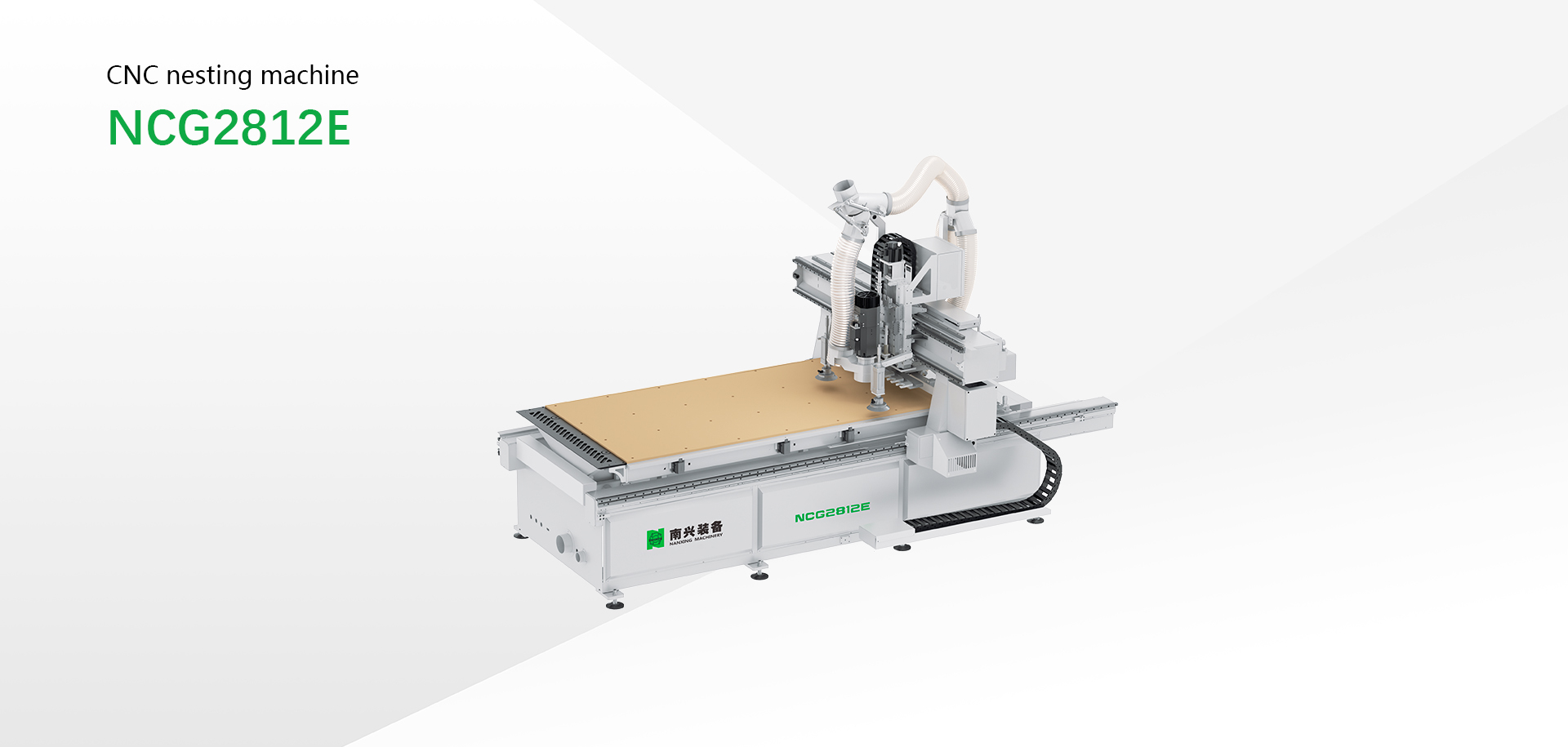

CNC Nesting Machine NCG2812E

NCG2812E with 4 high-speed main spindles is able to meet various processing requirements like nesting, shaping, grooving, top side boring. Max. speed along X & Y direction up to 50m/min, auto feed-in and out table improve the efficiency, save labor. IPC control with window 7 operation system of high stability and ease of operation. Optional NCG2513LE with additional auto loading and unloading tables.

Highlights

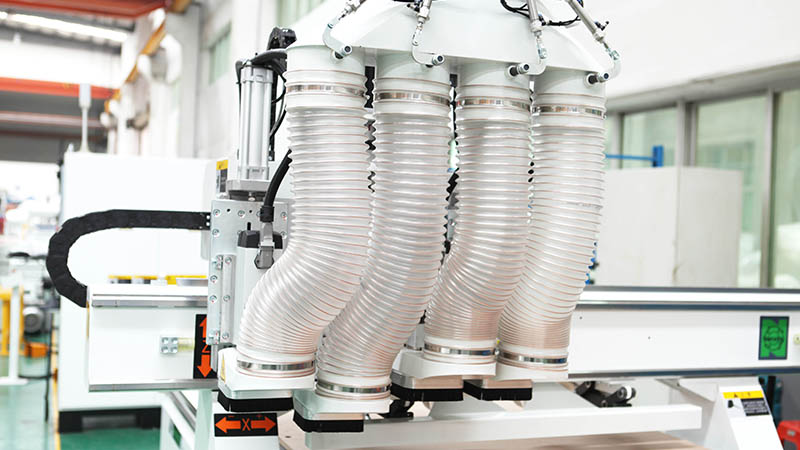

  • 3 pcs 3.5kw main spindles plus 1 pc 6kw main spindle make it possible to meet complicated processing requirement including top boring, grooving, nesting and routing some shapes.Collet type: ER32;

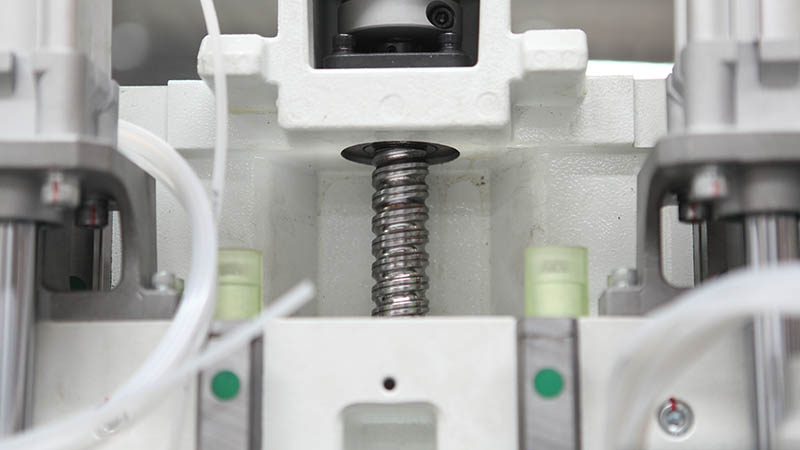

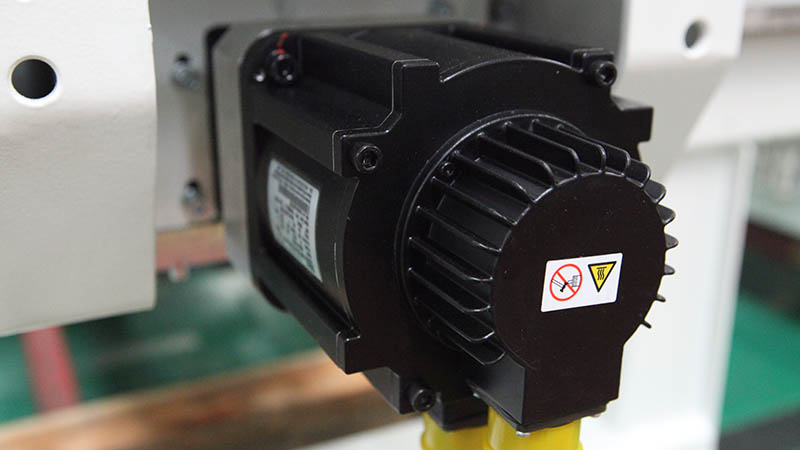

  • Movement of Z axis by ball screw rod. The accurate movement of each axis is ensured by high quality servo motors;

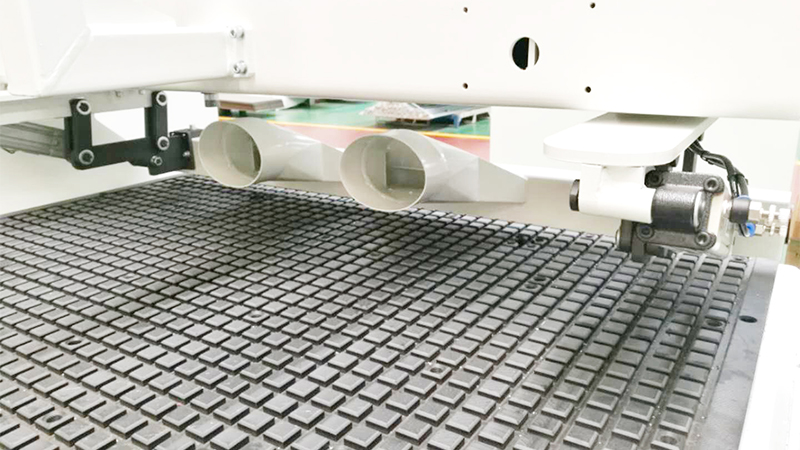

  • Machine is equipped with a pushing device which give unloading finished workpieces work max convenience;
  • Daily grease work of transmission parts is so easy to do by using lubrication pump.
  • Independent control cabinet with organized wire and high-quality electric components. IPC with Windows operation system.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NCG2812E

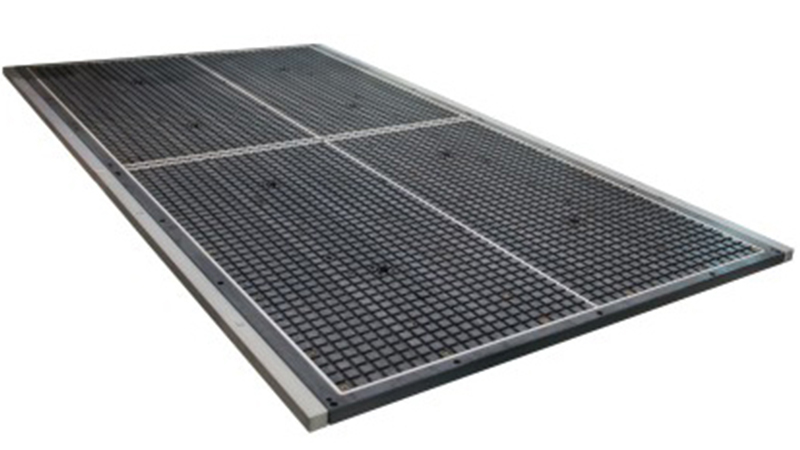

Table size

2800×1220mm

Max speed

100/100/20 m/min

Main spindle power

9kw

Max rotating speed

24000rpm

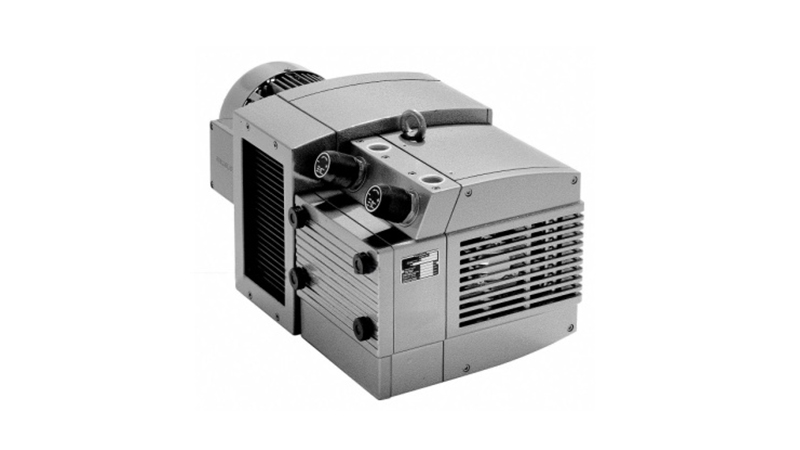

Vacuum pump

7.5kw

Suction flow rate

250m3/h

Dust extraction

φ200mm

Total power

24kw

Overall dimension

4020×2270×2500mm

Net weight

2500kg
