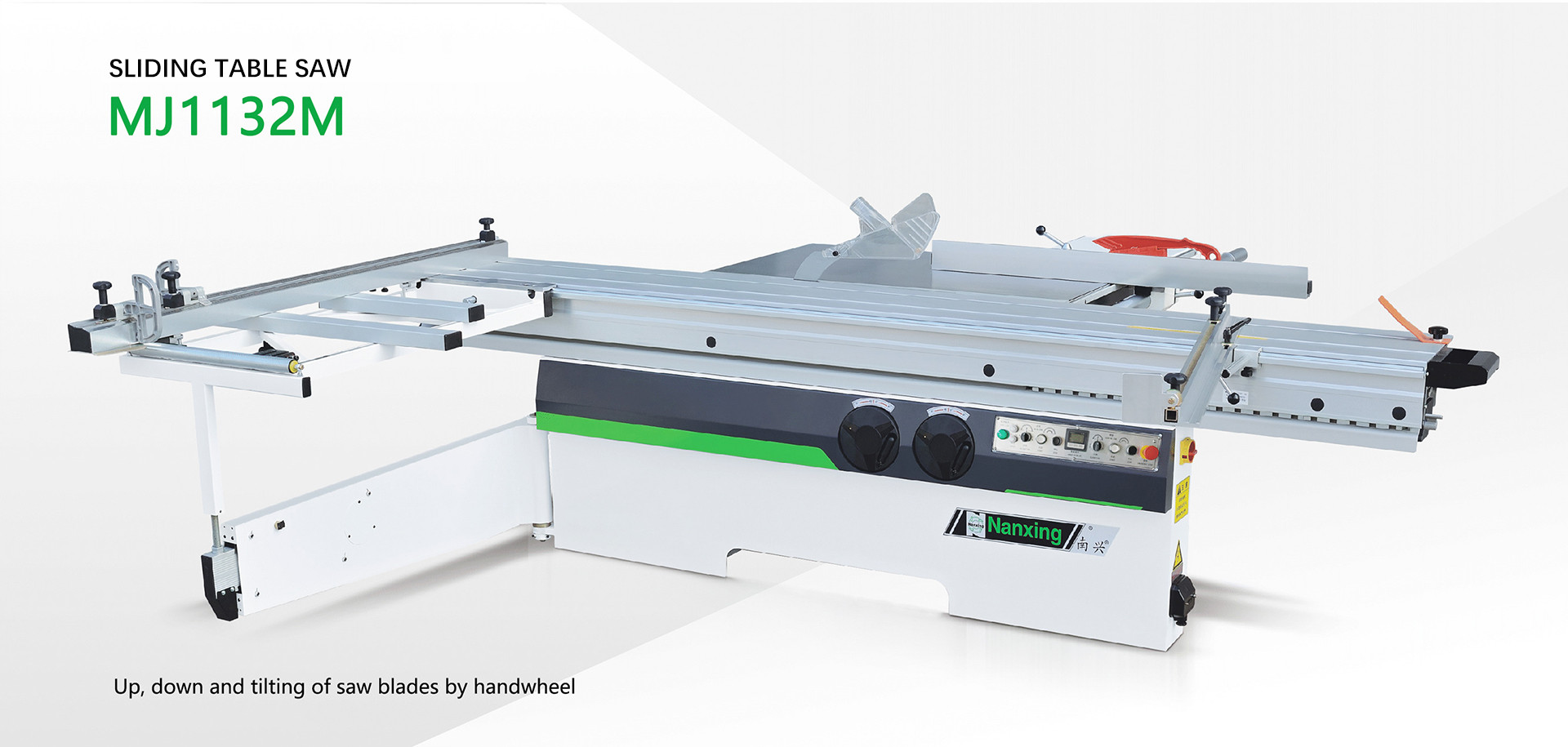

Sliding Table Saw MJ1132M

High cost-efficiency, height and angle of saw blades can be adjusted by using hand wheel, easy to operate.

Highlights

  • Strong machine body for great stability and longer service life.

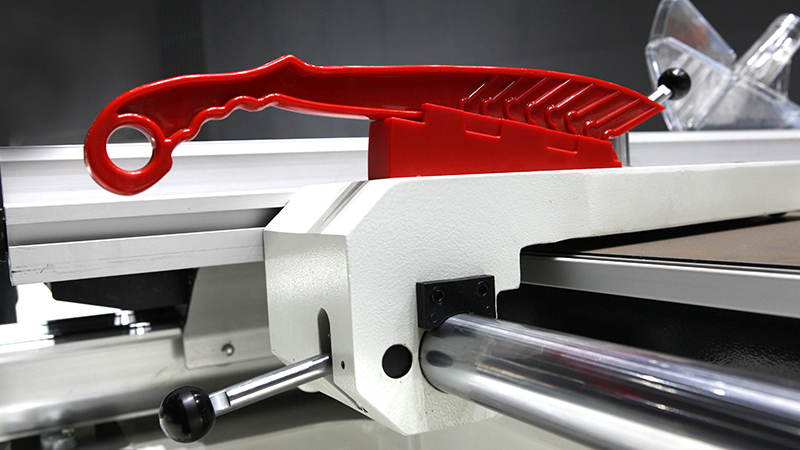

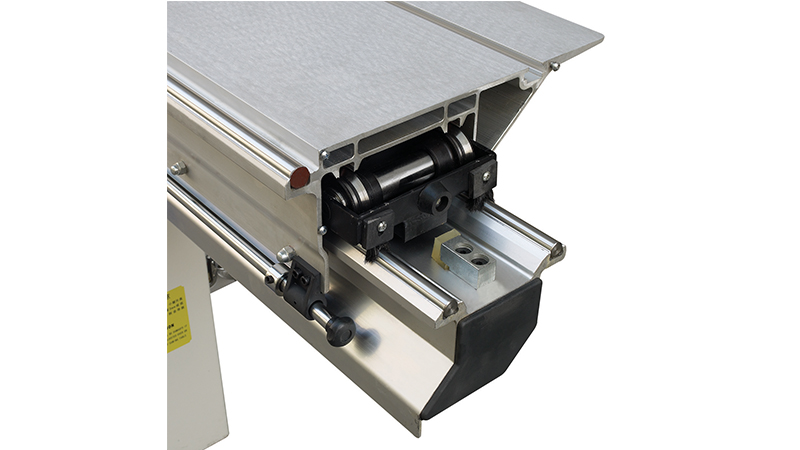

  • Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment.
  • Height of saw blade can be adjusted easily by hand wheel.
  • Main saw and scoring saw can tilt within 0-45°by using hand wheel.
  • Optional MJ1138M for your choice for cutting max 3.7m panel.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

MJ1132M

MJ1138M

Cutting length

3100mm

3700mm

0°cutting thickness

100mm

100mm

45°cutting thickness

70mm

70mm

Main saw rotating speed

3800/5200rpm

3800/5200rpm

Main saw motor

5.5kw

5.5kw

Scoring saw rotating speed

9000rpm

9000rpm

Scoring saw motor

1.1kw

1.1kw

Saw blade angle

0-45°

0-45°

Dust extraction

φ120mm

φ120mm

Total power

6.6kw

6.6kw

Overall size

3400×3380×1400mm

3400×3380×1400mm

Net weight

785kg

830kg
