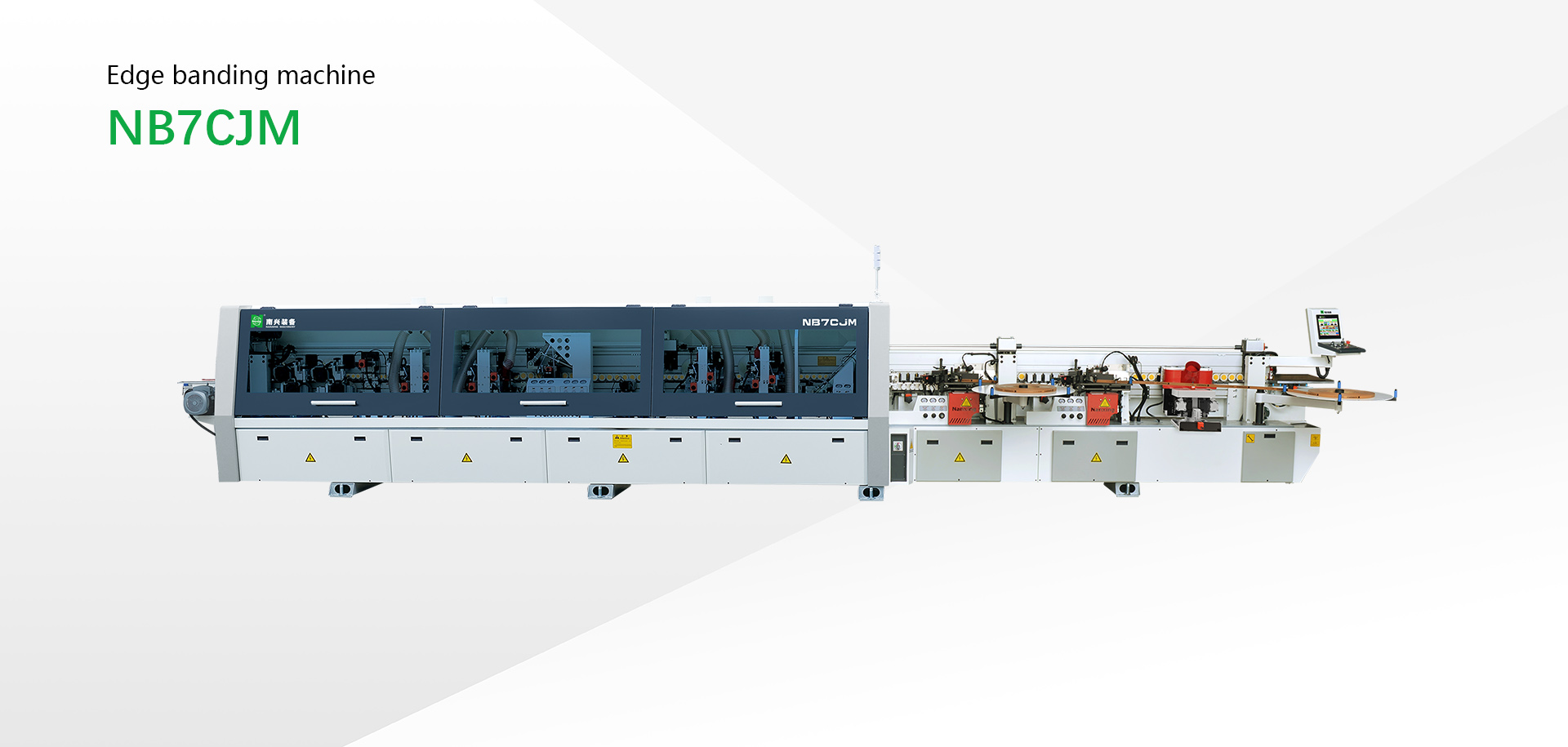

Edge Banding Machine with Double Gluing Units NB7CJM

Highlights

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Additional pre-milling at front;
  • Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements. Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.
  • Most electric components are in world famous brand.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NB7CJM

Panel length

≥120mm(corner trim≥200mm)

Panel width

≥80mm

Min panel size

120×80mm(corner trim on)

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

16/20/24m/min

Feeding speed(corner trimming on)

----

Dust extraction

φ125mm×5

Total power

30kw

Overall dimension

9800×1050×1650mm

Net weight

3670kg
