Two gluing units

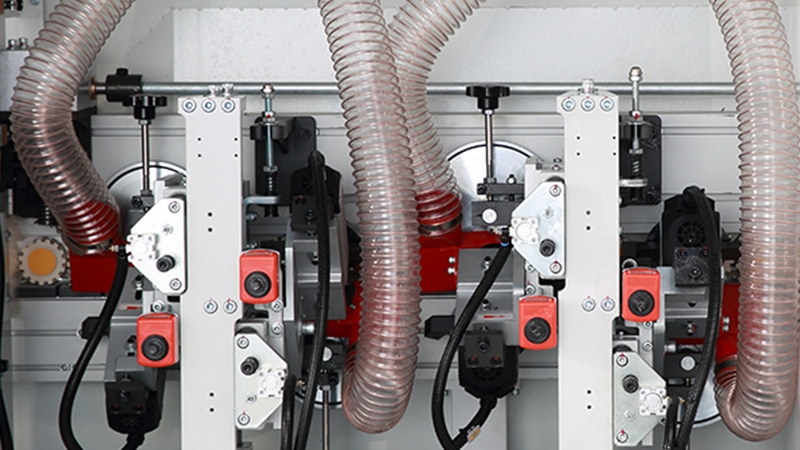

Two sets fine and scraping units
Corner trimming units

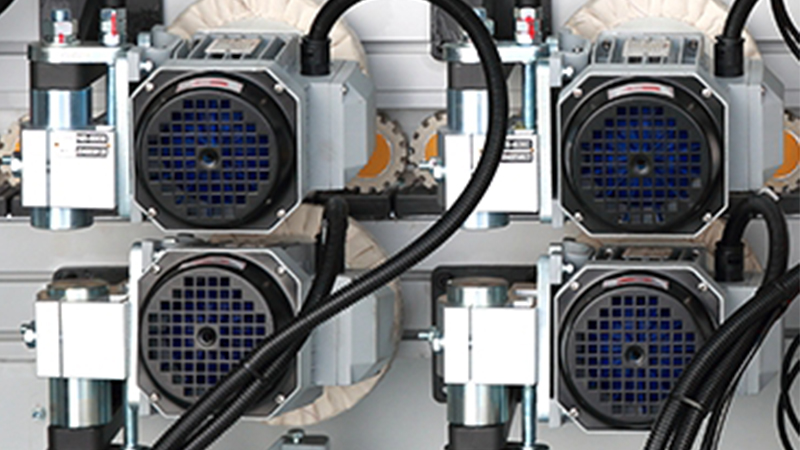

Two sets of buffing units
Nanxing Headquarters in Dongguan China
跨度可达16米,运输长度可达50米及更高值

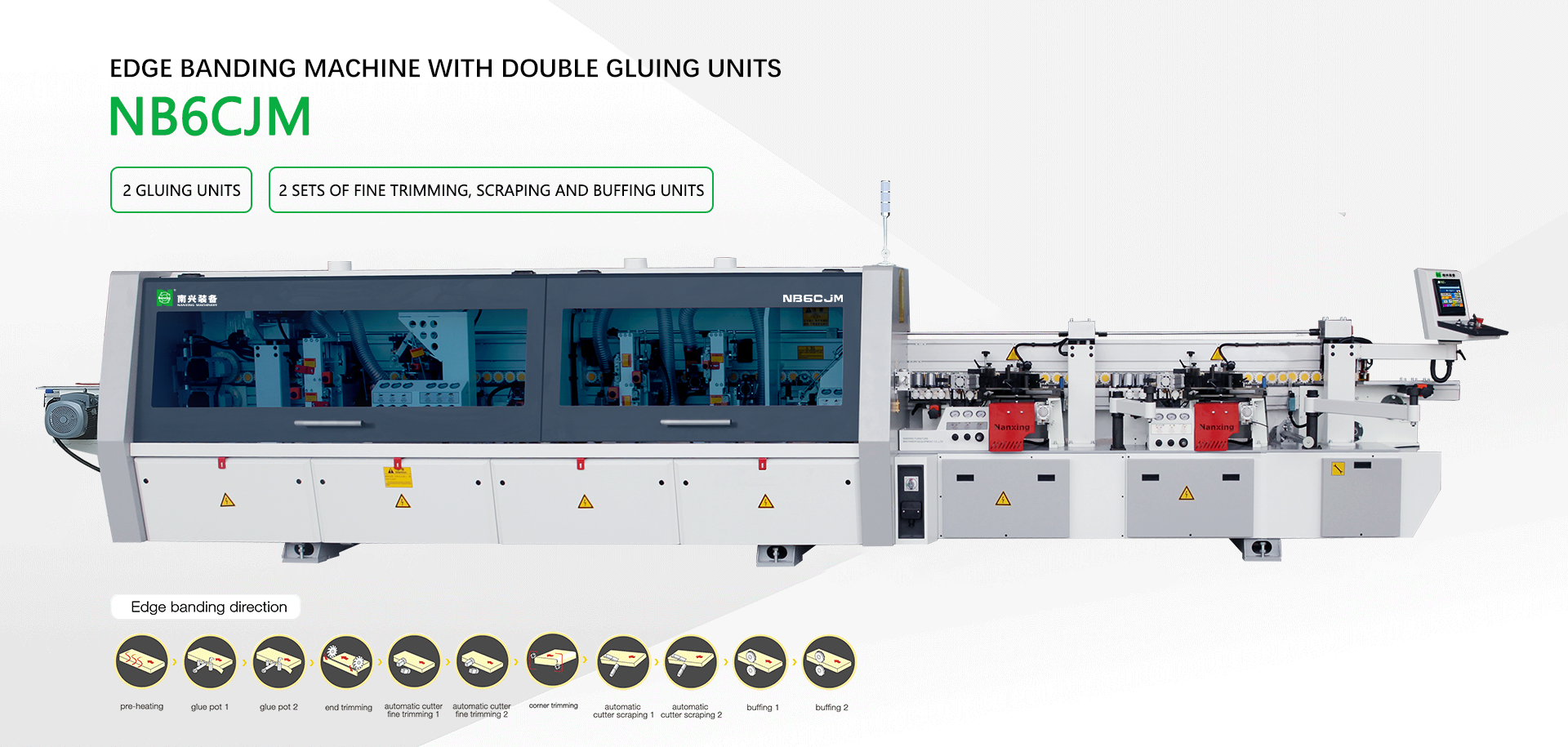

Model
NB6CJM
Panel length
≥120mm(corner trim on≥200mm)
Panel width
≥80mm
Min panel size
120×80mm
Panel thickness
9-60mm
Edge tape thickness
0.4-3mm
Feeding speed
16/20/24m/min
Feeding speed(corner trimming on)
----
Dust extraction
φ125mm×4
Total power
22.6kw
Overall dimension
9400×1450×1650mm
Net weight
3100kg
